LTC3454EDD#PBF - High Efficiency, Synchronous Buck-Boost DC/DC Converter

The LTC3454EDD#PBF is a versatile and efficient synchronous buck-boost DC/DC converter from Linear Technology, designed to manage power supply requirements in a wide array of portable and battery-operated applications. Its unique architecture allows it to seamlessly transition between buck (step-down) and boost (step-up) modes, ensuring a consistent output voltage even when the input voltage crosses over the output voltage level.

Key Features:

• Wide Input Voltage Range: The device operates over a broad input voltage range from 2.7V to 4.5V, making it suitable for single-cell Li-Ion, multi-cell alkaline, or NiMH applications.
• Adjustable Output Voltage: Users can set the output voltage from 2.7V to 5.5V via an external resistor divider, providing flexibility for various design needs.
• High Efficiency: With its synchronous rectification and low quiescent current, the LTC3454EDD#PBF achieves high efficiency across a wide load range.
• Powerful Output Current: It can deliver up to 1A of continuous output current in buck mode and 800mA in boost mode, supporting a range of power-intensive applications.

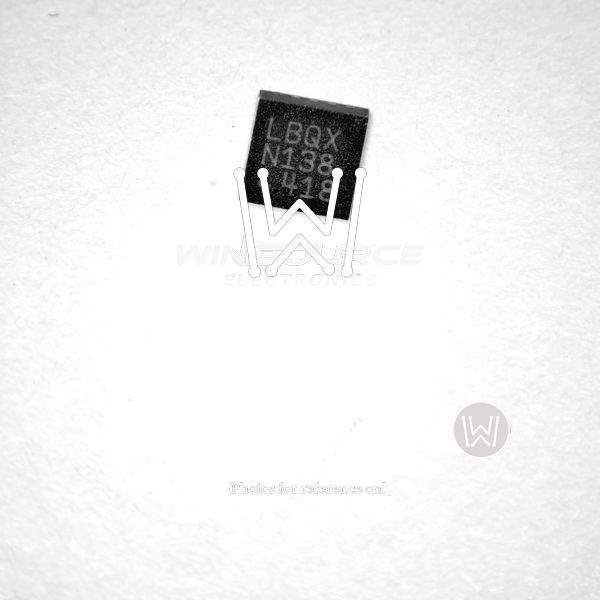

• Compact Design: Housed in a 10-pin DFN package (3mm x 3mm), the LTC3454EDD#PBF is designed for space-constrained applications.
• Integrated Soft-Start: This feature limits inrush current during startup, providing a safe and controlled ramp-up of voltage.
• Thermal Protection: The device includes over-temperature protection to safeguard against excessive heat during operation.

Applications:

The LTC3454EDD#PBF is an ideal solution for portable devices requiring a compact and efficient power management system. Common applications include:

• Handheld Instruments
• Medical Devices
• Portable Media Players
• GPS Devices
• Wireless Modems

For designers looking for a power-efficient, high-performance, and adaptable DC/DC converter, the LTC3454EDD#PBF from Linear Technology offers an exceptional solution that meets the demands of modern portable electronics.
