Linear Technology LTC2204CUK High-Speed ADC

The LTC2204CUK is a cutting-edge, high-speed, 16-bit Analog-to-Digital Converter (ADC) from Linear Technology, designed to provide exceptional performance in a wide range of applications requiring precise signal conversion from analog to digital form. This product offers a remarkable sample rate of up to 10Msps, which ensures that even the fastest signal dynamics are captured with high fidelity.

At the core of the LTC2204CUK's performance is its advanced sampling technology, which allows for a wide input bandwidth. This makes the ADC suitable for applications such as medical imaging, high-speed data acquisition systems, communication systems, and digital oscilloscopes, where accurate and rapid conversion of analog signals is critical.

The LTC2204CUK operates with a single 5V supply, simplifying the power supply design. It also includes features such as a shutdown mode that reduces the power consumption when the ADC is not in active use, making it an energy-efficient choice for portable and battery-powered devices.

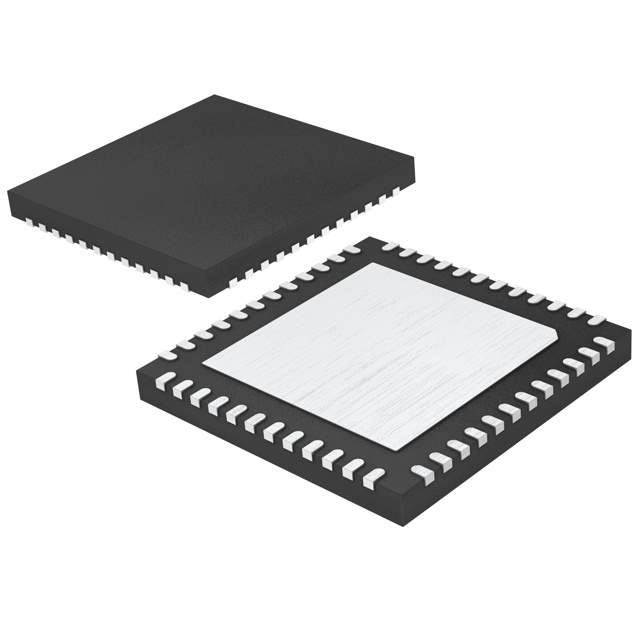

Designed for ease of integration, the LTC2204CUK comes in a compact, 48-pin 7mm × 7mm QFN package that saves space on the PCB. Its digital outputs are CMOS compatible, and the ADC also features an optional LVDS output mode to minimize digital output noise, beneficial in noise-sensitive applications.

For precision and accuracy, the LTC2204CUK incorporates no missing codes over the full operating temperature range. It has a Signal-to-Noise Ratio (SNR) of 76.4dB and a Total Harmonic Distortion (THD) of -85dB, ensuring high-quality signal conversion for demanding applications.

To facilitate the development process, Linear Technology provides comprehensive support and documentation for the LTC2204CUK, including datasheets, reference designs, and application notes. This support helps designers to quickly and effectively implement the ADC into their projects, reducing time to market and ensuring successful integration.

Overall, the LTC2204CUK from Linear Technology is an excellent choice for designers looking for a high-speed, high-precision ADC that combines performance, efficiency, and ease of use in a small package.
