Product Overview: LT6703HDC-3#TRPBF

The LT6703HDC-3#TRPBF is a high-performance, low-power comparator with an integrated voltage reference from Linear Technology. This precision device is designed for applications requiring a compact, low-voltage solution for voltage detection and signal processing. The LT6703HDC-3#TRPBF is suitable for various markets, including automotive, industrial control systems, power management, and portable electronics.

Key Features

• Integrated Voltage Reference: The LT6703HDC-3#TRPBF comes with a 400mV reference voltage, which is highly accurate and stable over temperature and time, providing a reliable threshold for comparison.
• Low Power Consumption: This device is designed for power-sensitive applications, consuming only 6.5μA of supply current, which helps to extend battery life in portable devices.
• Wide Input Voltage Range: The comparator operates over a wide supply voltage range from 1.4V to 18V, making it versatile for use in a variety of circuit configurations.
• Fast Response Time: The LT6703HDC-3#TRPBF boasts a fast propagation delay of typically 13μs, allowing for quick response in systems that require timely signal processing.
• Over-The-Top® Input Range: The unique 'Over-The-Top' input structure allows the input voltage to go above the positive supply, providing flexibility in design and enhancing the robustness of the application.

Applications

• Battery Monitoring
• Threshold Detection and Signal Conditioning
• Window Comparators
• Portable Electronics
• Power Supplies
• Industrial and Automotive Systems

Product Specifications

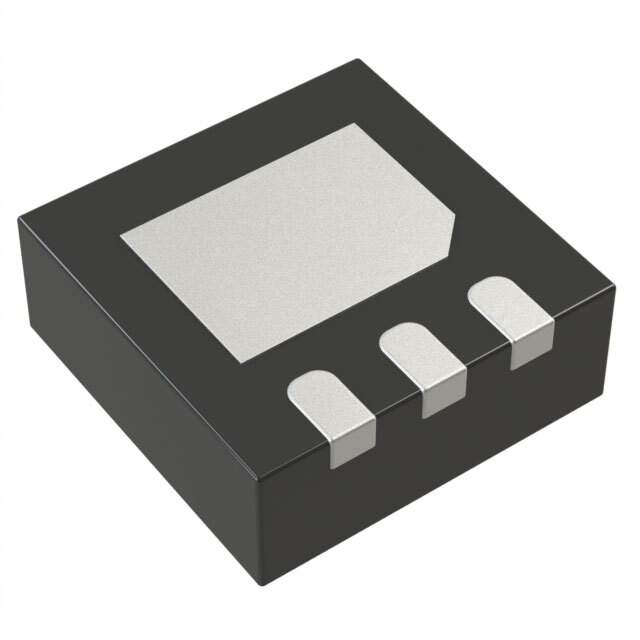

The LT6703HDC-3#TRPBF is offered in a compact 6-lead 2mm x 2mm DFN package, which is ideal for space-constrained applications. It is specified for operation from -40°C to 125°C, covering the full industrial temperature range. The device's push-pull output stage can sink and source current, making it suitable for driving a variety of loads.

In summary, the LT6703HDC-3#TRPBF from Linear Technology is a versatile and efficient solution for precision voltage comparison and detection. Its low power consumption, integrated voltage reference, and robust input range make it a top choice for designers looking to enhance the performance of their systems.
