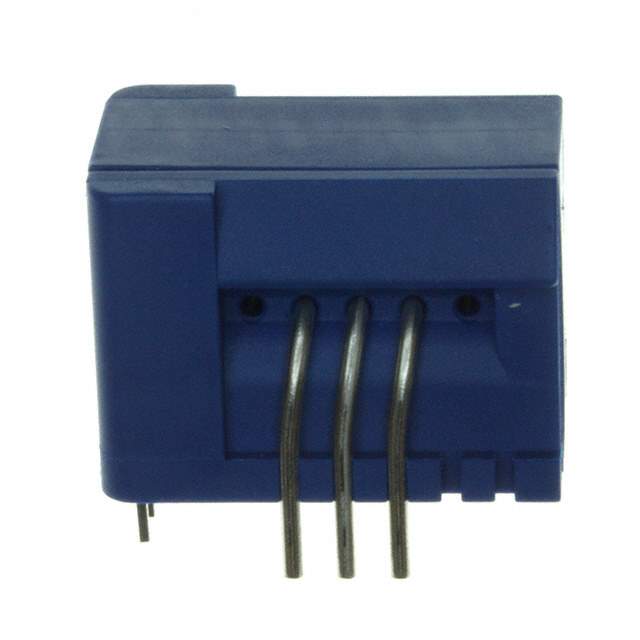

The CAS15-NP is a current transducer manufactured by LEM. This device is designed to accurately measure AC, DC, and pulsed currents and convert them into a voltage output that can be easily read by a measuring instrument or control system. It is used in a wide range of applications requiring precise current monitoring and control.

Applications

• Variable Speed Drives
• Battery Management Systems
• Uninterruptible Power Supplies (UPS)
• Welding equipment
• Power inverters

Features

• Closed-loop (compensated) technology
• High accuracy
• Excellent linearity
• Low temperature drift
• Galvanic isolation between primary and secondary circuits

Benefits

• Provides accurate current measurements
• Ensures precise control of electrical systems
• Protects equipment from overcurrent conditions
• Enhances system reliability
• Simplifies current monitoring and data acquisition

Additional Details

The CAS15-NP utilizes a closed-loop (compensated) technology to achieve high accuracy and linearity. In a closed-loop system, the magnetic field generated by the primary current is compensated by a secondary current, resulting in a more accurate measurement. The galvanic isolation between the primary and secondary circuits provides safety and prevents ground loops. The device operates over a wide temperature range, ensuring stable performance in various environmental conditions. It's designed for ease of installation and integration into existing systems. The voltage output is proportional to the measured current, making it easy to interface with analog-to-digital converters (ADCs) and other measurement devices. The CAS15-NP is commonly used for monitoring and controlling currents in power electronics applications. The transducer is known for its robustness and reliability. The accuracy specification often includes a combination of offset, gain, and linearity errors. The current transducer provides essential information for optimizing system performance and protecting sensitive equipment from damage.
