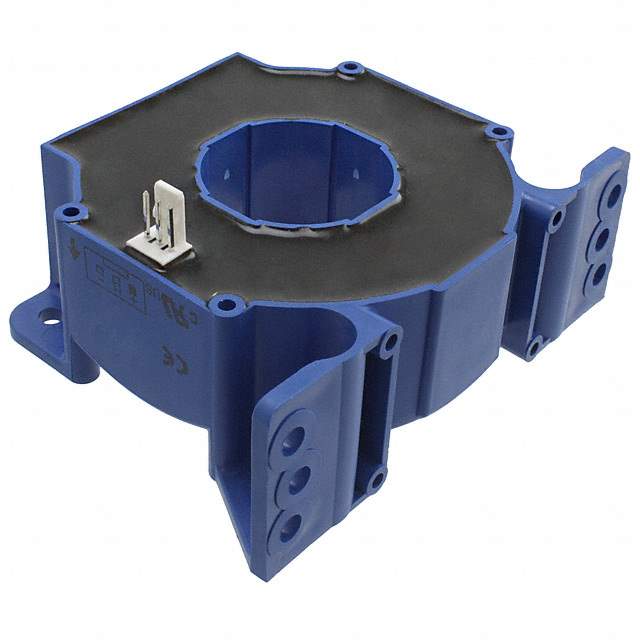

LF 505-S Real Image
Same model may have multiple batches, images only for reference.

LF 505-S

Part No LF 505-S
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 500A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series LF
Packaging Tray
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 500A
Number of Channels 1
Output Ratiometric, Current
Frequency DC ~ 100kHz
Linearity ±0.1%
Accuracy ±0.6%
Operating Supply Voltage ±15 V ~ 24 V
Response Time 1μs
Maximum Supply Current 124mA
Operating Temperature Range -40°C ~ 70°C
Polarization Bidirectional
Mounting Chassis Mount
Package Module
Win Source Part Number 778494-LF 505-S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LF 505-S CAD Model

Description

The LF 505-S is a hall effect closed-loop current sensor module manufactured by LEM USA Inc.

  • Type: Hall Effect Closed-Loop Current Sensor
  • Supply and Demand: Balanced
  • Polarization: Bidirectional
  • Measurement: AC/DC Current up to 500A
  • Accuracy: ±0.6%
  • Response Time: 1μs
  • Output: Ratiometric, Current
  • Operating Temperature Range: -40°C to 70°C
  • Operating Supply Voltage: ±15V to 24V
  • Sensitivity: -
  • Linearity: ±0.1%
