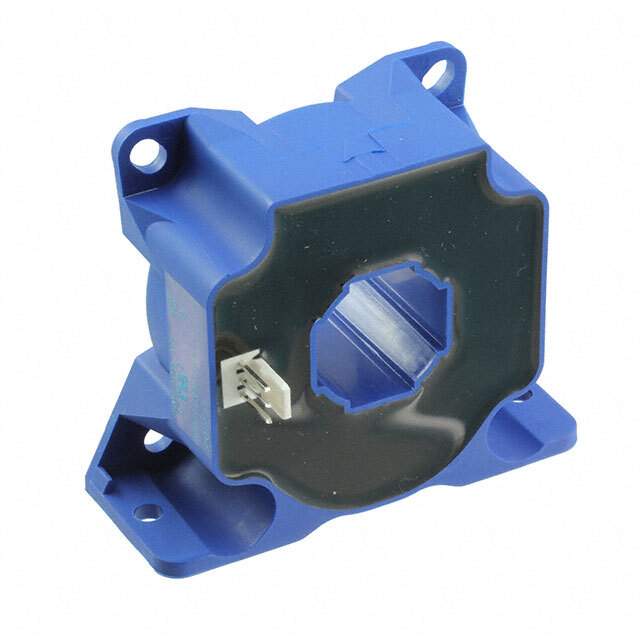

Same model may have multiple batches, images only for reference.

LF 310-S

Name: LF 310-S
Brand: LEM USA Inc.
SKU: 467645
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LF 310-S
Manufacturer	LEM USA Inc.
Catalog	Current Transducers
Description	C/L, ASIC 300A PANEL MOUNT
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Sensors, Transducers
Manufacturer	LEM USA Inc.
Packaging	Bulk
Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Closed Loop
Current - Sensing	300A
Number of Channels	1
Output	Ratiometric, Current
Sensitivity	0.5mA/A
Frequency	100kHz
Linearity	±0.05%
Accuracy	±0.2%
Supply Voltage - Operating	11.4 V to 21 V
Response Time	0.5μs
Current - Supply (Max)	38mA
Temperature Range - Operating	-40°C to 85°C
Polarization	Bidirectional
Mounting	Panel Mount
Dimension	Module, Single Pass Through
Win Source Part Number	1052295-LF 310-S
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LF 310-S CAD Model

Description

The LEM USA Inc. LF 310-S is a high-quality sensor that is ideal for use in various electronic devices.

Measurement: AC/DC
Sensitivity: 0.5mA/A
Packaging: bulk
Response Time: 0.5μs
Mounting Style: panel mount
Frequency: 100kHz
Output: ratiometric, current
Polarization: bidirectional
Current Sensing: 300A
Linearity: ±0.05%
Accuracy: ±0.2%
Number of Channels: 1
Supply Voltage Range: 11.4 V to 21 V
Category: Sensors, Transducers
Popularity: medium
