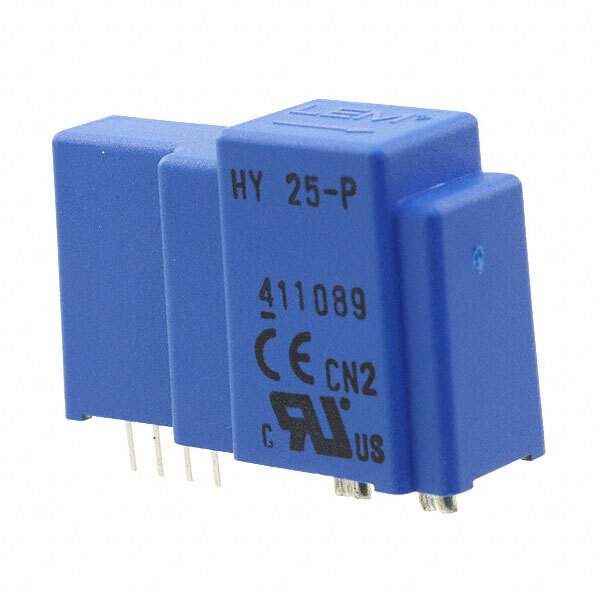

The HY25-P is a current transducer manufactured by LEM. It's designed for non-intrusive measurement of AC, DC, and pulsed currents. It uses the Hall effect principle to provide an isolated measurement signal proportional to the current flowing through the primary conductor. This makes it a safe and reliable way to monitor current in various applications.

Applications:

• Variable Speed Drives (VSDs)
• Uninterruptible Power Supplies (UPS)
• Welding equipment
• Battery chargers
• Power inverters
• Current monitoring in industrial applications

Features:

• Galvanic isolation between primary and secondary circuits
• Measures AC, DC, and pulsed currents
• Hall effect technology for accurate measurement
• Compact design
• Low power consumption
• Wide operating temperature range
• Various current ranges available within the HY series

Benefits:

• Safe current measurement: Galvanic isolation protects the measurement circuit from high voltages in the primary circuit.
• Non-intrusive measurement: Allows for current measurement without interrupting the circuit.
• Accurate measurement: Hall effect technology provides accurate and reliable current readings.
• Versatile: Measures AC, DC, and pulsed currents, making it suitable for a wide range of applications.
• Compact size: Space-saving design allows for easy integration into existing systems.

Additional Details:

The HY25-P typically requires a single DC power supply. The output signal is a current proportional to the primary current. The isolation voltage rating indicates the maximum voltage that the transducer can withstand between the primary and secondary circuits. The accuracy and linearity specifications define the performance of the transducer over its operating range. The specific current range will vary depending on the exact model of the HY25-P.
