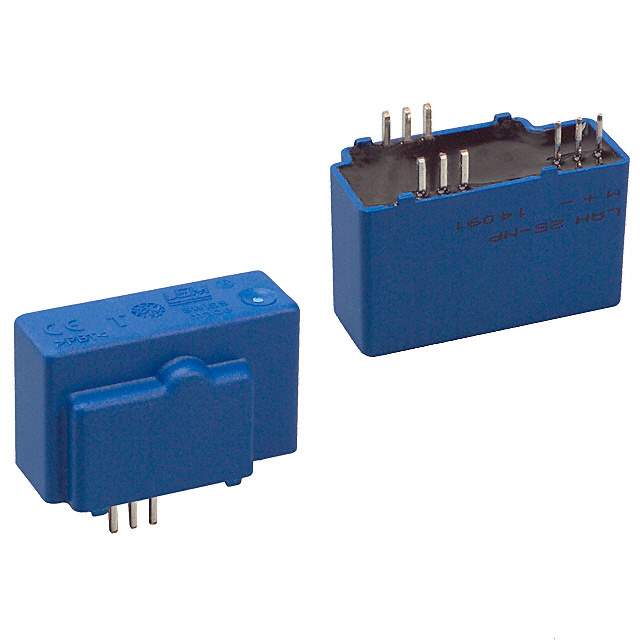

LAH 25-NP Real Image
Same model may have multiple batches, images only for reference.

LAH 25-NP

Part No LAH 25-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 8A, 12A, 25A
Datasheet
LAH 25-NP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 8A, 12A, 25A (Selectable)
Number of Channels 1
Output Ratiometric, Current
Frequency DC to 200kHz
Linearity ±0.2%
Accuracy ±0.3%
Supply Voltage - Operating ±12 V to 15 V
Response Time 0.5μs
Current - Supply (Max) 35mA
Temperature Range - Operating -25°C to 85°C
Polarization Bidirectional
Mounting Through Hole
Win Source Part Number 1051547-LAH 25-NP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 12
Ultra Librarian 3D Model Ultra Librarian LAH 25-NP CAD Model

Description

The LAH 25-NP is a Hall Effect, closed-loop type sensor designed for measuring AC/DC current.

  • Manufacturer: LEM USA Inc.
  • Sensor Type: Hall Effect, Closed-Loop
  • Response Time: 0.5μs
  • Frequency Range: DC to 200kHz
  • Output: Ratiometric, Bidirectional
  • Current Sensing Range: 8A, 12A, or 25A
  • Sensitivity: ±0.2%
  • Accuracy: ±0.3%
  • Applications: Power Supplies and Motor Control
