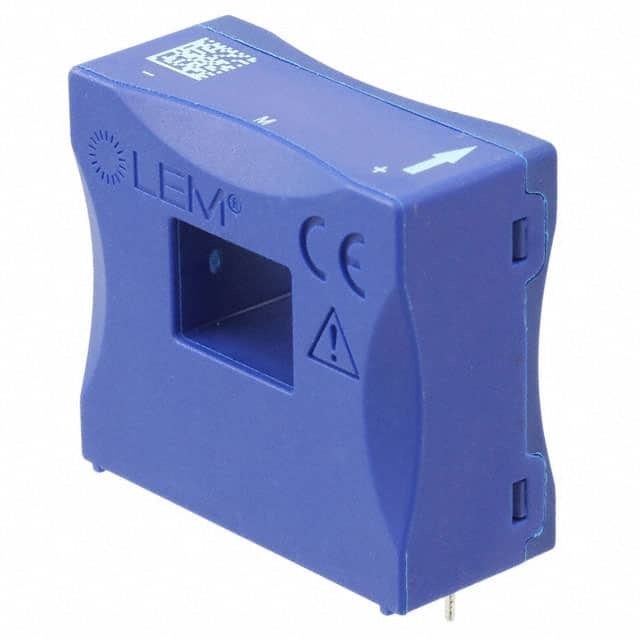

LA 130-P
Same model may have multiple batches, images only for reference.

LA 130-P

Part No LA 130-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 130A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Package Bulk
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 130A
Number of Channels 1
Output Ratiometric, Current
Frequency DC ~ 150kHz
Linearity ±1%
Accuracy ±0.5%
Voltage - Supply ±12V ~ 15V
Response Time 0.5µs
Current - Supply (Max) 140mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module, Single Pass Through
Standard Package 20 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 847047-LA 130-P
Ultra Librarian 3D Model Ultra Librarian LA 130-P CAD Model

Description

The 847047-LA 130-P is a current sensor designed for measuring AC/DC current up to 130A by LEM USA Inc.

  • Sensor Type: Closed Loop Hall Effect
  • Supply Voltage: ±12V to ±15V
  • Supply Current (Max): 140mA
  • Response Time: 0.5μs
  • Output: Ratiometric, Current
  • Polarization: Bidirectional
  • Package: Through Hole Module
  • Operating Temperature: -40°C to 85°C
  • Status: Active
