Same model may have multiple batches, images only for reference.

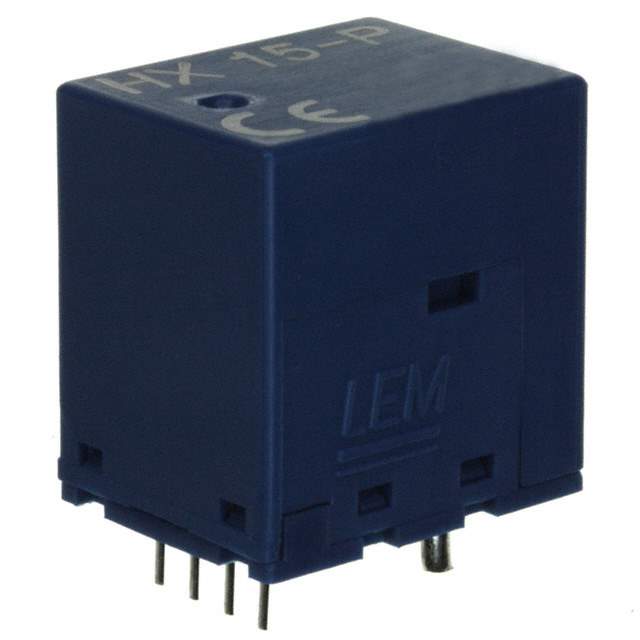

HX 15-P Real Image
Same model may have multiple batches, images only for reference.

HX 15-P

Part No HX 15-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 15A AC/DC
Datasheet
HX 15-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series HX
Packaging Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 15A
Number of Channels 1
Output Ratiometric, Voltage
Frequency 50kHz
Linearity ±1%
Accuracy ±1%
Operating Supply Voltage ±15V
Response Time 3μs
Maximum Supply Current 15mA
Operating Temperature Range -25°C ~ 85°C
Polarization Bidirectional
Mounting Style Through Hole
Package Module
Win Source Part Number 776259-HX 15-P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HX 15-P CAD Model

Description

The HX 15-P is a through-hole module type sensor from the HX series manufactured by LEM USA Inc.

  • Series: HX
  • Applications: AC/DC Measuring
  • Sensitivity: -
  • Current Sensing: 15A
  • Response Time: 3μs
  • Frequency: 50kHz
  • Operating Supply Voltage: ±15V
  • Output: Ratiometric, Voltage
  • Polarization: Bidirectional
  • Channels: Single
  • Packaging: Tray
  • Popularity: Medium
