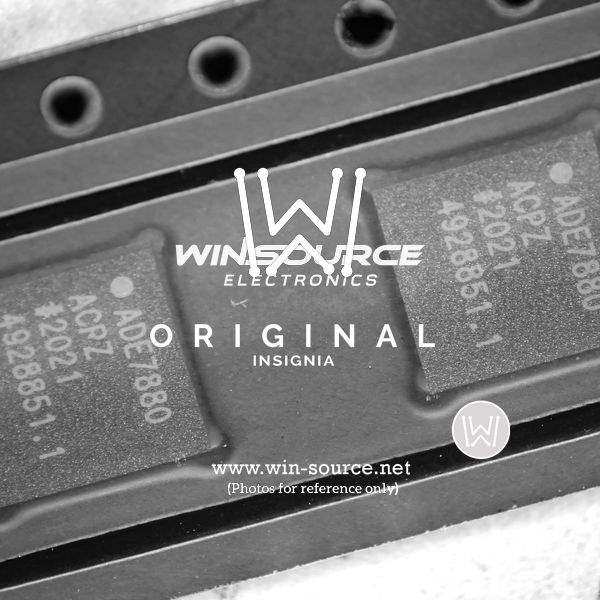

The ADE7880ACPZ-RL is a highly integrated polyphase multifunction energy metering IC from Analog Devices Inc., designed for real-time measurement of electrical parameters in various power management systems. Its sophisticated architecture allows for accurate monitoring of multiple electrical variables including active power, reactive power, apparent power, voltage, and current across three phases of electrical systems.

Key Features

• High Precision: The ADE7880ACPZ-RL boasts high accuracy levels, making it suitable for advanced energy metering applications.
• Multi-Phase Support: This IC is capable of handling measurements in three-phase electrical systems, which is essential for industrial and commercial power monitoring.
• Integrated Harmonic Analysis: It includes a harmonic analysis feature that enables the detection of harmonic distortions in the power system.
• On-Chip ADC: Comes with an integrated analog-to-digital converter (ADC) that ensures the precise conversion of analog signals into digital data for processing.
• Communication Interface: Features a serial peripheral interface (SPI) for easy communication with microcontrollers and other digital systems.

Applications

The ADE7880ACPZ-RL is designed for use in a variety of applications, including:

• Smart grid energy metering
• Industrial power monitoring
• Renewable energy systems
• Power quality analysis
• Commercial building energy management

Package and Reliability

This IC is available in a compact LFCSP (Lead Frame Chip Scale Package) that ensures a small footprint while providing robustness and reliability required for industrial environments. The ADE7880ACPZ-RL is characterized for operation over an extended industrial temperature range, making it a versatile choice for harsh operating conditions.

Support and Resources

Analog Devices Inc. provides comprehensive technical support for the ADE7880ACPZ-RL, including detailed datasheets, application notes, and reference designs to facilitate the integration of this IC into various energy metering solutions.
