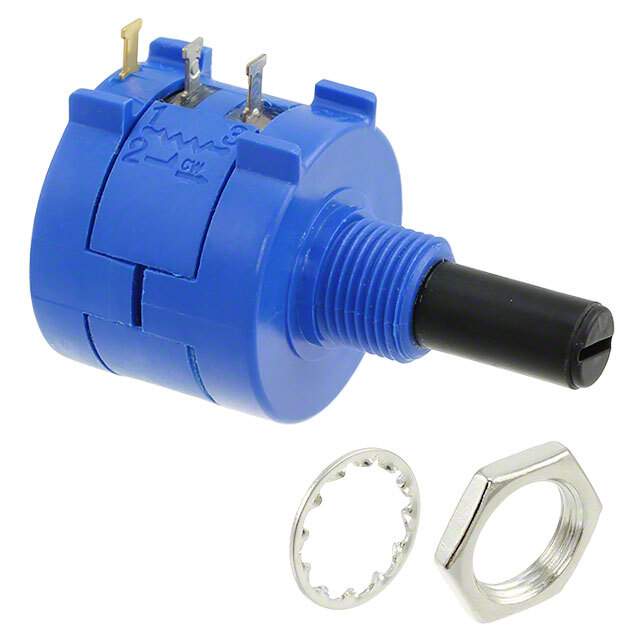

Same model may have multiple batches, images only for reference.

3590S-1-102L

Name: 3590S-1-102L
Brand: Bourns Inc.
SKU: 545606
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3590S-1-102L
Manufacturer	Bourns Inc.
Catalog	Rotary Potentiometers, Rheostats
Description	Precision Potentiometer \| POT 1K OHM 2W WIREWOUND LINEAR
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Potentiometers, Variable Resistors
Manufacturer	Bourns Inc.
Packaging	Bulk
Resistance (Ohms)	1k
Tolerance	±5%
Power (W)	2W
Built in Switch	None
Number of Turns	10
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.812" (20.63mm)
Actuator Diameter	0.248" (6.30mm)
Bushing Thread	3/8-32
Mounting Style	Panel Mount
Size - Body	Round - 0.875" Dia x 0.732" H (22.22mm x 18.60mm)
Family Part Number	3590S
Manufacturer Pack Quantity	5
MSL Level	1 (Unlimited)
Win Source Part Number	1128294-3590S-1-102L
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 3590S-1-102L CAD Model

Alternative Products

Description

The Bourns Inc. 3590S-1-102L is a linear taper potentiometer with a resistance of 1k.

Tolerance: ±5%
Power Rating: 2W
Size: 0.875" Dia x 0.732" H (22.22mm x 18.60mm)
Mounting: panel mounted
Turns: 10
Rotation: 3600°
Applications: potentiometers and variable resistors
