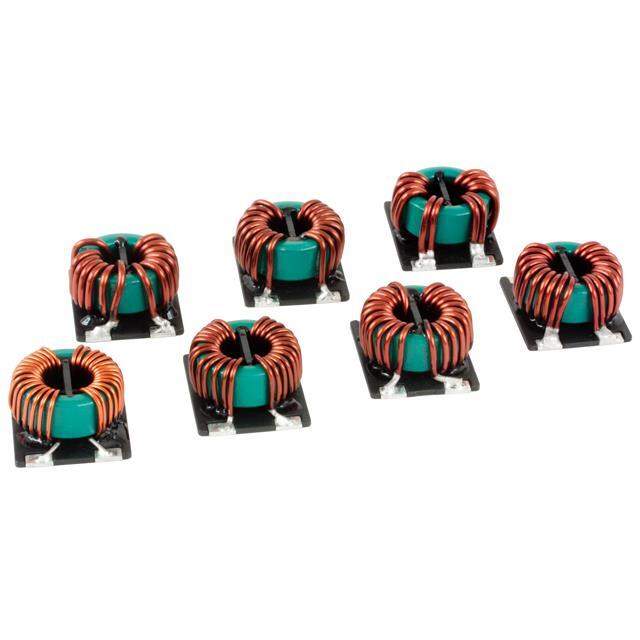

CMX1211Z321B-10 Real Image
Same model may have multiple batches, images only for reference.

CMX1211Z321B-10

Part No CMX1211Z321B-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 320UH 28A 2LN SMD / 320 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 28A DCR 2.5mOhm
Datasheet
CMX1211Z321B-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Laird-Signal Integrity Products
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 320 µH @ 100 kHz
Current Rating (Max) 28A
DC Resistance (DCR) (Max) 2.5mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Size / Dimension 1.240" L x 0.984" W (31.50mm x 25.00mm)
Height (Max) 0.748" (19.00mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 240-3048,CMX1211Z321B-10-ND
Standard Package 420
Win Source Part Number 1328389-CMX1211Z321B-10
Ultra Librarian 3D Model Ultra Librarian CMX1211Z321B-10 CAD Model

Description

The Laird-Signal Integrity Products CMX1211Z321B-10 is a common mode choke that is designed for filters.

  • Voltage Rating: 250V
  • Maximum Current Rating: 28A
  • Inductance: 320 μH @ 100 kHz
  • DC Resistance: 2.5mOhm
  • Mounting: Surface Mount
  • Configuration: Horizontal, 4 PC Pad
  • Filter Type: Power Line
  • Lines: 2
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
