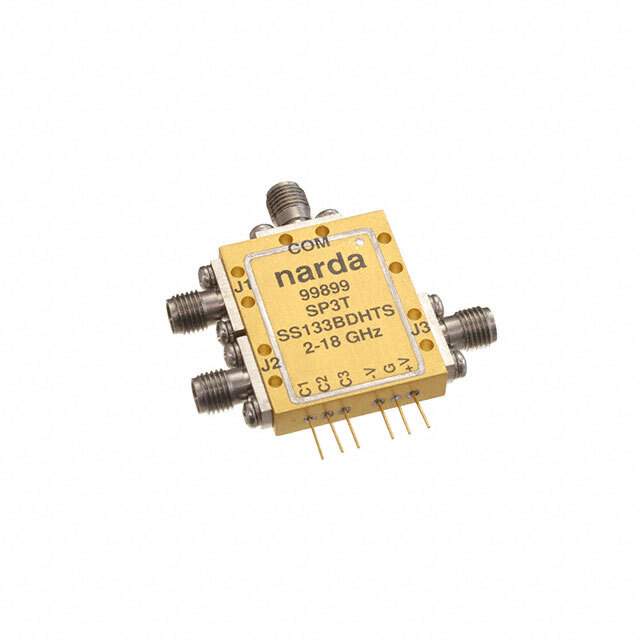

SS133BDHTS Real Image
Same model may have multiple batches, images only for reference.

SS133BDHTS

Part No SS133BDHTS
Manufacturer L3 Narda-MITEQ
Catalog RF Switches
Description PIN SWITCH SP3T 2-18 GHZ / RF Switch IC General Purpose SP3T Module
Datasheet
SS133BDHTS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr L3 Narda-MITEQ
Series Super-Slim
Package Box
RF Type General Purpose
Topology Absorptive
Circuit SP3T
Frequency Range 2GHz ~ 18GHz
Isolation 45dB (min)
Insertion Loss 3.2dB (max)
Test Frequency 16GHz ~ 18GHz
Temperature Range - Operating -54°C ~ 95°C
Package / Case Module, SMA Connectors
Supplier Device Package Module
Base Product Number SS133
Other Names 1949-1222
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1235878-SS133BDHTS
Ultra Librarian 3D Model Ultra Librarian SS133BDHTS CAD Model

Description

The Super-Slim series RF switch is a SP3T absorptive topology circuit designed for general-purpose RF applications.

  • Circuit: SP3T absorptive topology
  • Application: General-purpose RF
  • Frequency Range: 2GHz to 18GHz
  • Test Frequency: 16GHz to 18GHz
  • Insertion Loss: 3.2dB (max)
  • Isolation: 45dB (min)
  • Package Type: Module with SMA connectors
  • Operating Temperature: -54°C to 95°C
  • REACH: REACH unaffected
