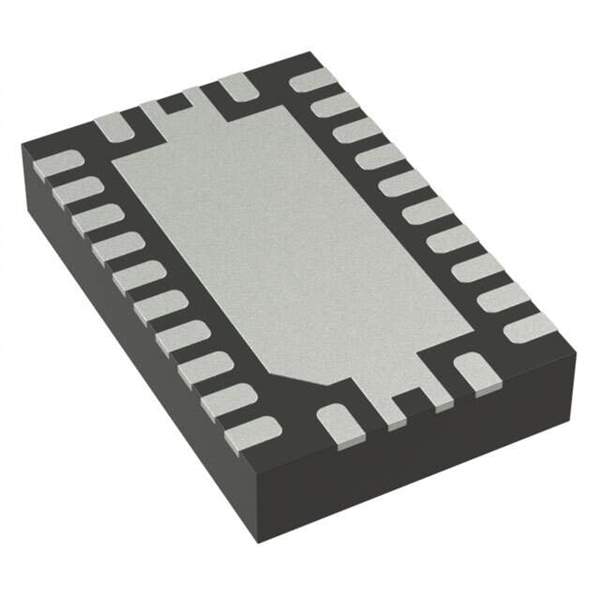

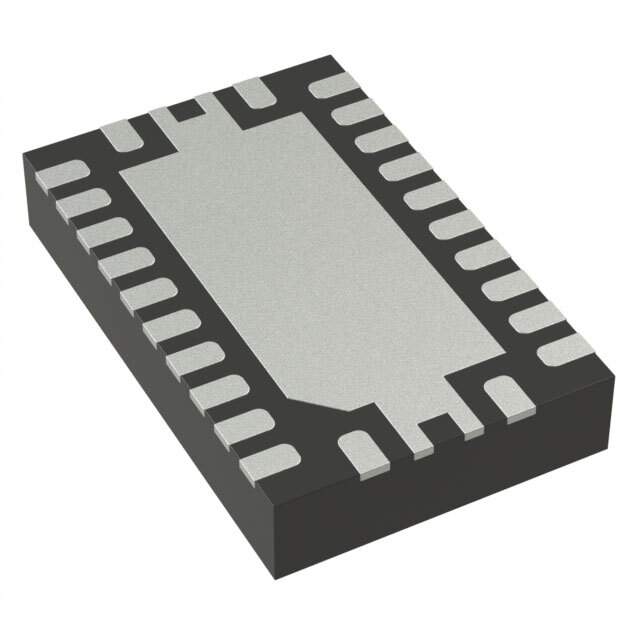

The CLVC8T245MRHLTEP from Texas Instruments is a robust, high-performance 8-bit dual-supply bus transceiver designed with a low-voltage complementary metal-oxide-semiconductor (LVC) technology. This transceiver is part of the EP (Enhanced Product) range, which is specifically engineered to meet the rigorous demands of defense, aerospace, and other high-reliability industries.

Key Features

• Bi-Directional Interface: The device provides a two-way communication interface between two buses with different voltage domains. It allows for seamless data transfer, ensuring compatibility between systems operating at different voltage levels.
• Wide Voltage Range: It supports a broad range of supply voltages, from 1.65V to 5.5V on the A side and from 2.3V to 5.5V on the B side, which makes it highly versatile for interfacing with various logic levels.
• Control Pins: With the OE (Output Enable) and DIR (Direction Control) pins, users can easily control the direction of data flow and the output state of the transceiver, providing greater flexibility in system design.
• Low Power Consumption: Designed to operate with low power dissipation, this transceiver is an ideal choice for power-sensitive applications.
• High-Speed Data Transmission: The CLVC8T245MRHLTEP is capable of supporting high-speed data transmission, which is essential for applications requiring fast data throughput.
• Robust Protection: The device includes over-voltage tolerant inputs and outputs up to 5.5V, which helps in protecting the IC from potential damage caused by voltage spikes.

Applications

The versatility and reliability of the CLVC8T245MRHLTEP make it suitable for a variety of applications, including:

• Level translation in multi-voltage systems
• Data bus interfacing and buffering
• Signal gating
• High-reliability applications in the defense and aerospace sectors

With its enhanced product features, the CLVC8T245MRHLTEP is a top-tier solution for designers looking to bridge the gap between different logic levels while ensuring data integrity and system reliability.
