Same model may have multiple batches, images only for reference.
SPV08A0LR5H-1 Real Image
Same model may have multiple batches, images only for reference.

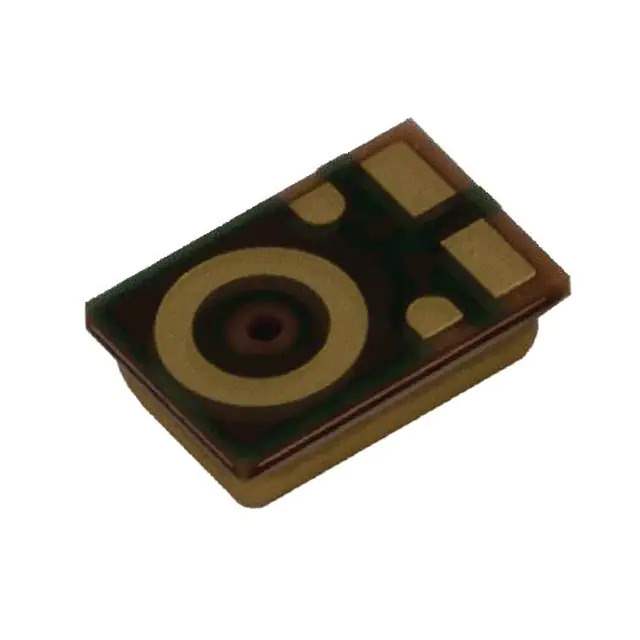

SPV08A0LR5H-1

Part No SPV08A0LR5H-1
Manufacturer Knowles
Catalog Microphones
Description MIC MEMS ANALOG OMNI -42DB / 20 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 2.3 V ~ 3.6 V Omnidirectional (-42dB ±1dB @ 94dB SPL) Solder Pads
Datasheet
SPV08A0LR5H-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Microphones
Mfr Knowles
Series SiSonic™ SPV
Package Tape & Reel
Product Status Active
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 20 Hz ~ 10 kHz
Sensitivity -42dB ±1dB @ 94dB SPL
S/N Ratio 64dB
Voltage Range 2.3 V ~ 3.6 V
Current - Supply 200 µA
Port Location Bottom
Termination Solder Pads
Size / Dimension 0.108" L x 0.073" W (2.75mm x 1.85mm)
Height (Max) 0.039" (1.00mm)
Shape Rectangular
Standard Package 5,900 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8518.10.8030
Win Source Part Number 897167-SPV08A0LR5H-1
Ultra Librarian 3D Model Ultra Librarian SPV08A0LR5H-1 CAD Model

Description

The SPV08A0LR5H-1 is a MEMS microphone from the SiSonic™ SPV series, manufactured by Knowles.

  • Termination: Solder Pad
  • Packaging: Tape & Reel
  • Length: 0.108 inches
  • Width: 0.073 inches
  • Voltage Range: 2.3V to 3.6V
  • Frequency Range: 20 Hz to 10 kHz
  • Output Type: Analog
  • Directionality: Omnidirectional
  • Sensitivity: -42dB ±1dB @ 94dB SPL
  • SNR: 64dB
  • Current Supply: 200μA
  • Port Location: Bottom
