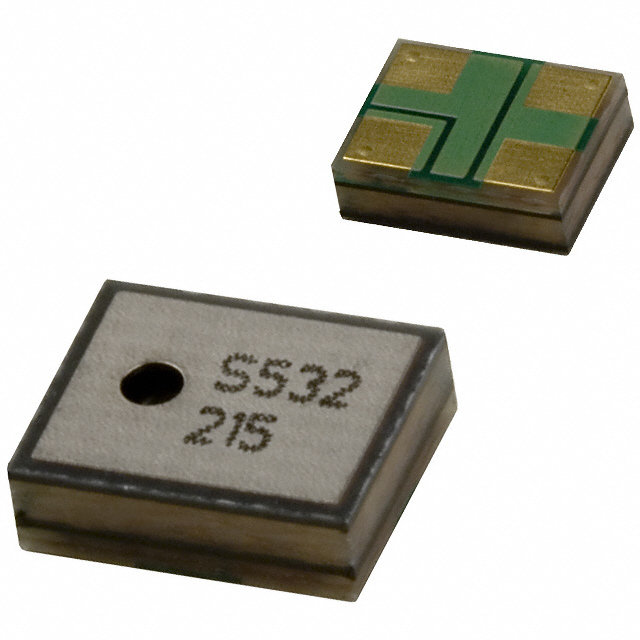

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Packaging Reel - TR
Status Obsolete(EOL)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz to 8kHz
Sensitivity -42dB ±4dB @ 94dB SPL
S/N Ratio 59dB
Impedance 100 Ohm
Voltage Range 1.5 to 5.5V
Operating Supply Current 250μA
Port Location Top
Termination Surface Mount
Height (Max) 0.067" (1.70mm)
Shape Rectangular
Win Source Part Number 122416-SPM0102ND3-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SPM0102ND3-2 CAD Model

Description

The Knowles MEMS (Silicon) component is a rectangular shaped device with an omnidirectional direction feature.

  • Sensitivity: -42dB ±4dB @ 94dB SPL
  • S/N Ratio: 59dB
  • Voltage Range: 1.5 to 5.5V
  • Operating Supply Current: 250μA
  • Frequency Range: 100Hz to 8kHz
  • Impedance: 100 Ohm
  • Output Type: Analog
  • Port Location: Top
  • Package: Reel-TR
  • Height: 0.067" (1.70mm)
  • Category: Audio Products
  • Status: Obsolete (EOL)
  • Supply and Demand: Balanced
