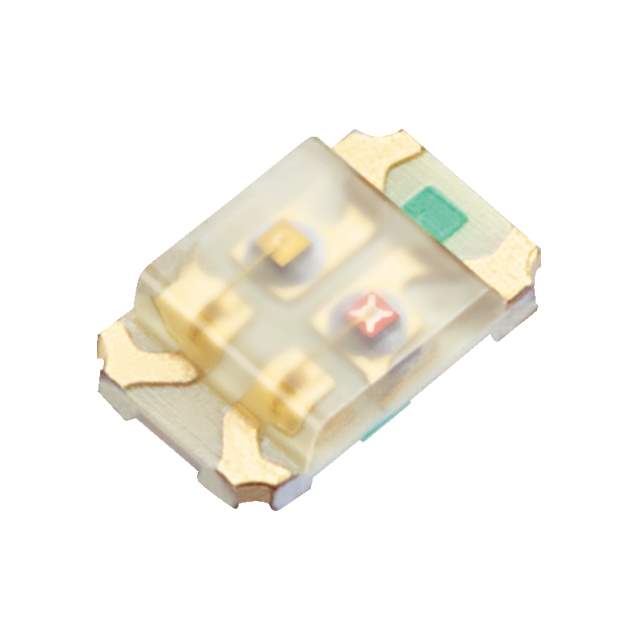

APHBM2012SURKZGKC Real Image
Same model may have multiple batches, images only for reference.

APHBM2012SURKZGKC

Part No APHBM2012SURKZGKC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 4SMD / Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red 0805 (2012 Metric)
Datasheet
APHBM2012SURKZGKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 280mcd Green, 250mcd Red
Lens Style Rectangle with Flat Top
Lens Size 1.25mm x 1.20mm
Voltage - Forward (Vf) (Typ) 3.3V Green, 1.95V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 525nm Green, 630nm Red
Wavelength - Peak 515nm Green, 645nm Red
Package / Case 0805 (2012 Metric)
Supplier Device Package 4-SMD
Dimension 2.00mm L x 1.25mm W
Height (Max) 0.45mm
Base Product Number APHBM2012
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-2117-2,754-2117-1,754-2117-6
Standard Package 2,000
Win Source Part Number 1150381-APHBM2012SURKZGKC
Ultra Librarian 3D Model Ultra Librarian APHBM2012SURKZGKC CAD Model

Description

The APHBM2012SURKZGKC is an LED indication device from Kingbright.

  • Viewing Angle: 120°
  • Millicandela Rating: 280mcd for green and 250mcd for red
  • Voltage Forward (Vf): 3.3V for green and 1.95V for red
  • Wavelength-Dominant: 525nm for green and 630nm for red
  • Packaging: Tape and reel
  • Standard Package Quantity: 2,000
  • Application: Optoelectronics and discrete LED indication
