Same model may have multiple batches, images only for reference.

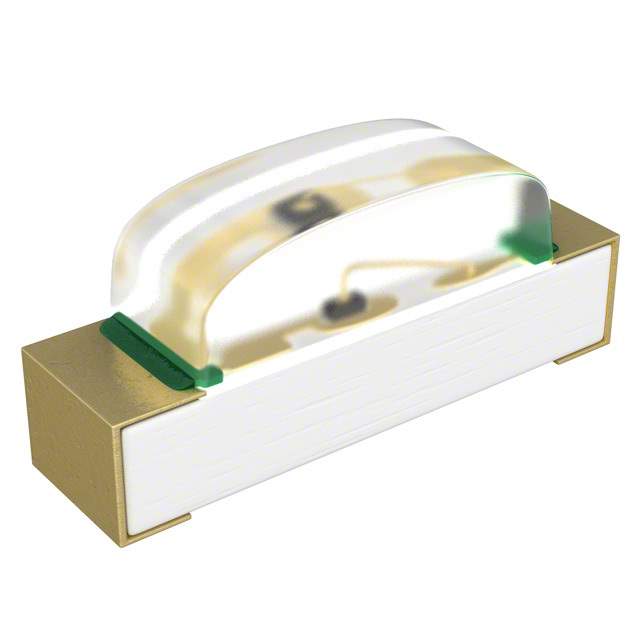

HSMG-C120 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C120

Part No HSMG-C120
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 0603 R/A SMD
Datasheet
HSMG-C120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 15mcd
Lens Style/Size Rectangle with Domed Top, 1.20mm x 0.60mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 155°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package 0603
Height (Max) 0.60mm
Win Source Part Number 1044007-HSMG-C120
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HSMG-C120 CAD Model

Description

The Broadcom Limited electronic component (product) is a green-colored surface mount LED with a right-angle mounting feature.

  • Color: Green
  • Mounting Type: Surface mount
  • Mounting Feature: Right-angle
  • Forward Voltage: 2.2V
  • Viewing Angle: 155°
  • Packaging: Reel - TR
  • Millicandela Rating: 15mcd
  • Supply and Demand Status: Limited
  • Wavelength-Dominant: 572nm
  • Wavelength-Peak: 570nm
  • Lens Style/Size: Rectangle with a domed top, 1.20mm x 0.60mm
  • Height: 0.60mm
