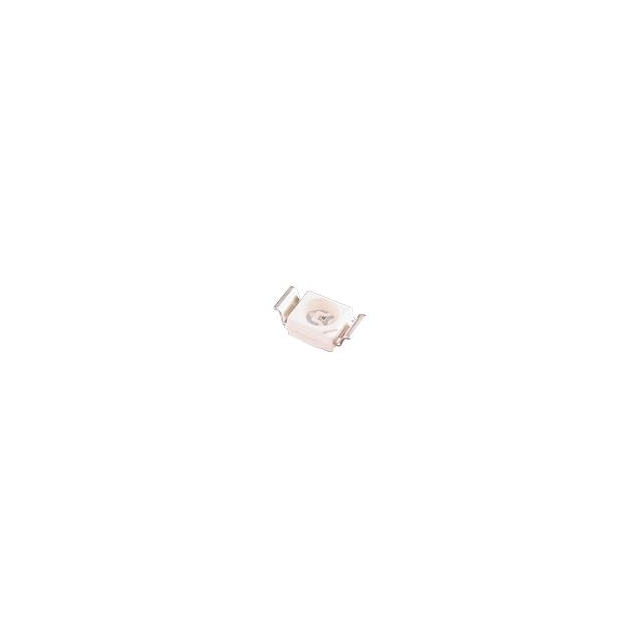

AA3528SURCKT09 Real Image1 AA3528SURCKT09 Real Image2
Same model may have multiple batches, images only for reference.
AA3528SURCKT09 Real Image1 AA3528SURCKT09 Real Image2
AA3528SURCKT09 Real Image1 AA3528SURCKT09 Real Image2
Same model may have multiple batches, images only for reference.

AA3528SURCKT09

Part No AA3528SURCKT09
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED SMD / Red 630nm LED Indication - Discrete 1.95V 2-SMD, Gull Wing
Datasheet
AA3528SURCKT09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Series Heli-R
Package Tape & Reel
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 2-SMD, Gull Wing
Supplier Device Package SMD
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.15mm
Base Product Number AA3528
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-AA3528SURCKT09CT,754-AA3528SURCKT09DKR,754-AA3528SURCKT09TR
Standard Package 2,000
Win Source Part Number 1020439-AA3528SURCKT09
Ultra Librarian 3D Model Ultra Librarian AA3528SURCKT09 CAD Model

Description

The Kingbright AA3528SURCKT09 is a Heli-R series LED indication electronic component that emits red color light.

  • Color: red
  • Viewing Angle: 120°
  • Millicandela Rating: 100mcd
  • Forward Voltage: 1.95V
  • Test Current: 20mA
  • Wavelength-Dominant: 630nm
  • Wavelength-Peak: 645nm
  • Package: 2-SMD, Gull Wing
  • Dimension: 3.20mm L x 2.80mm W
