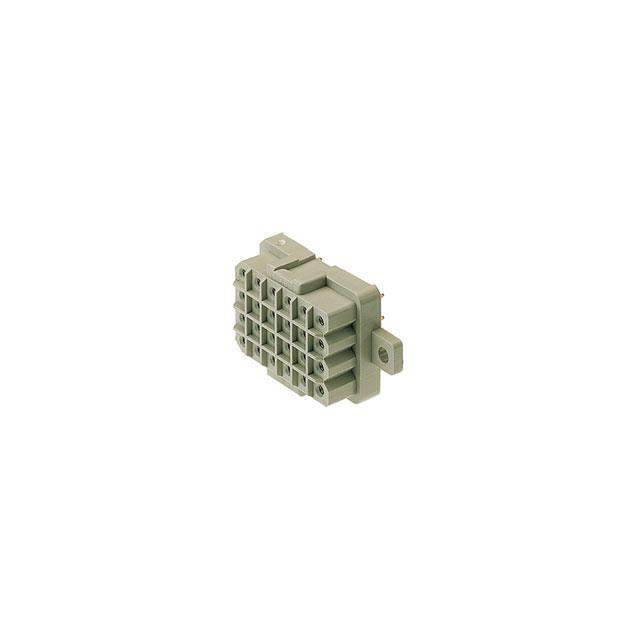

1415600000

Get a Quote

Part No	1415600000
Manufacturer	Weidmuller
Catalog	Rectangular Connectors
Description	CONN RCPT 9POS 0.197 GOLD PCB / 9 Position Receptacle Connector 0.197" (5.00mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Weidmüller
Series	Omnimate RSV
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	9
Number of Positions Loaded	All
Pitch - Mating	0.197" (5.00mm)
Number of Rows	3
Row Spacing - Mating	0.197" (5.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Insulation Color	Gray
Insulation Height	0.563" (14.30mm)
Contact Length - Post	0.177" (4.50mm)
Temperature Range - Operating	-20°C ~ 120°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Mounting Flange
Insulation Material	Polyamide (PA66) , Nylon 6/6
Contact Shape	Circular
Contact Material	Copper Alloy
Base Product Number	RSV 1.6
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1352117-1415600000
Ultra Librarian 3D Model	Ultra Librarian 1415600000 CAD Model

Description

The Weidmüller Omnimate RSV series connector is a 9 position rectangular connector with a receptacle connector type.

Positions: 9
Connector Type: Receptacle
Features: Mounting Flange
Termination: Solder
Fastening Type: Latch Holder
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Material: Copper Alloy
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Color: Gray
Mounting Type: Through Hole
Pitch-Mating: 0.197 inches (5.00mm)
Row Spacing-Mating: 0.197 inches (5.00mm)
Contact Length-Post: 0.177 inches (4.50mm)
Contact Shape: Circular
Operating Temperature Range: -20°C to 120°C
Application: Board-to-Board or Cable
