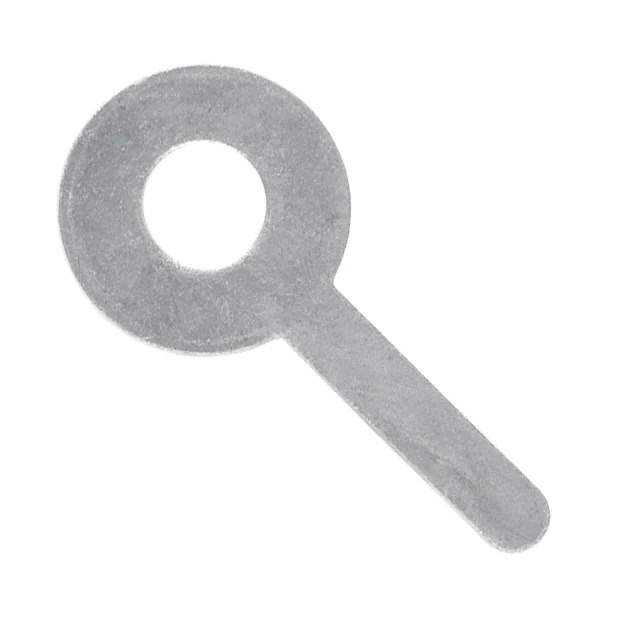

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Solder Lug Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type PCB, Long Tail
Style Smooth Edge
Mounting Type Through Hole
Length - Overall 0.500" (12.70mm)
Contact Material Brass
Contact Finish Tin
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 545830-4000
Ultra Librarian 3D Model Ultra Librarian 4000 CAD Model

Description

The 545830-4000 is a solder lug connector terminal designed for use in electronic applications. It features a smooth edge style and a long tail terminal type, allowing for easy soldering and secure connection.

  • Overall Length: 0.500 inches (12.70mm)
  • Material: Brass
  • Contact Finish: Tin
  • Mounting Type: Through-Hole
  • RoHS Compliant: Yes
  • Packaging: Bulk
