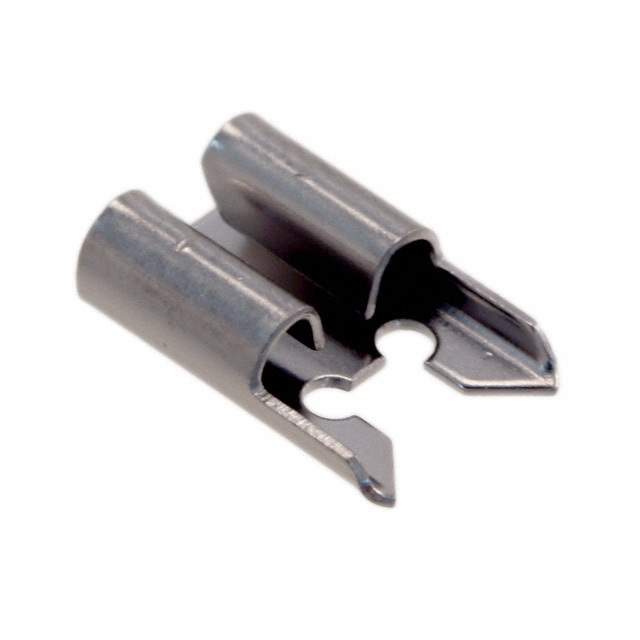

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.281" (7.14mm)
Length - Overall 0.437" (11.10mm)
Termination Press-Fit
Insulation Non-Insulated
Mounting Type Through Hole
Features UL Approved
Contact Material Brass
Contact Finish Tin
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 850550-3528
Ultra Librarian 3D Model Ultra Librarian 3528 CAD Model

Description

The 850550-3528 is a female quick connect terminal from Keystone Electronics.

  • Connector Type: Terminals and Quick Disconnect Connectors
  • Termination: Press-fit
  • UL Approved: Yes
  • Length: 0.437" (11.10mm)
  • Tab Width: 0.250" (6.35mm)
  • Insulation: Non-insulated
  • Material: Brass
  • Finish: Tin
  • Standard Package: 10 pcs
