Same model may have multiple batches, images only for reference.

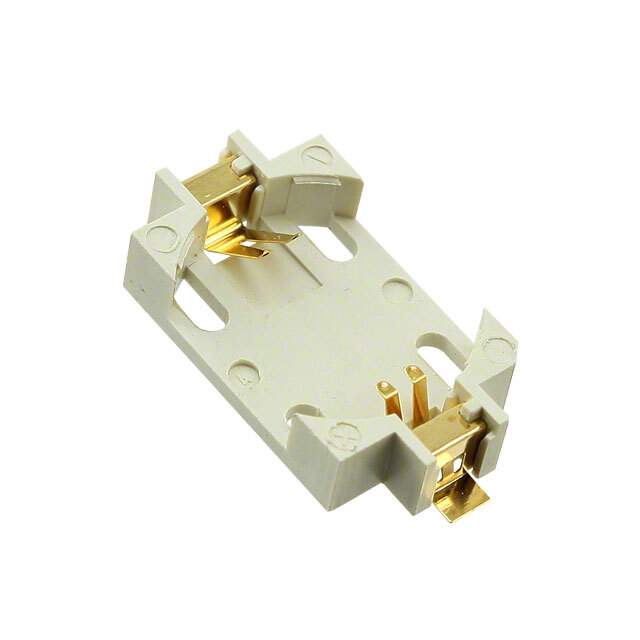

1060TR Real Image
Same model may have multiple batches, images only for reference.

1060TR

Part No 1060TR
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Datasheet
1060TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products>Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Series Vibra-Fit
Package Tape & Reel
Battery Type, Function Coin Cell, Holder
Style Holder (Open)
Battery Cell Size Coin, 20.0mm
Number of Cells 1
Battery Series 2032
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.217" (5.50mm)
Temperature Range - Operating -50°C ~ 145°C
Other Names 1060KCT,36-1060CT,Q104048,36-1060TR,36-1060DKR,1060KDKR,1060KTR,1060KTRR,1060KCT,1060KTR,1060KDKR,1060KTRL
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1314306-1060TR
Ultra Librarian 3D Model Ultra Librarian 1060TR CAD Model

Description

The Vibra-Fit 1314306-1060TR is an electronic component manufactured by Keystone Electronics. Keystone Electronics manufactures this.

  • Termination Style: SMD (SMT) tab
  • Battery Type: Coin cell
  • Package: Tape & reel
  • Standard Package: 500
  • Height Above Board: 0.217" (5.50mm)
