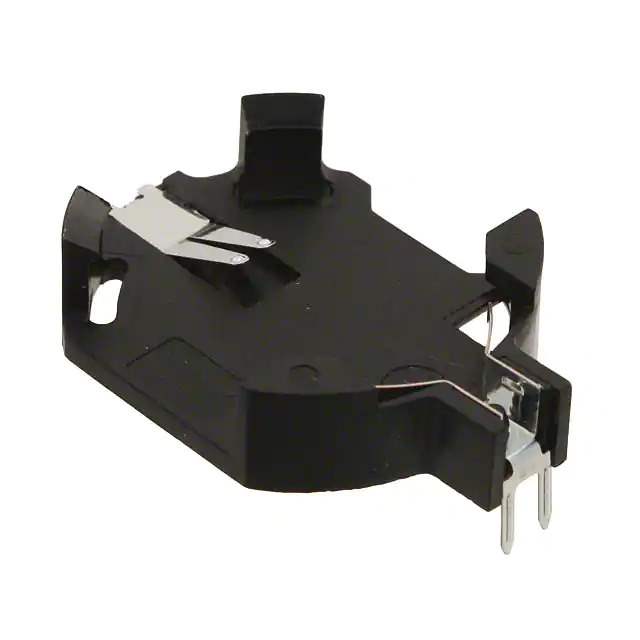

120591-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr TE Connectivity
Series AMP
Package Tray
Product Status Active
Battery Type, Function Coin Cell, Holder
Style Holder (Open)
Battery Cell Size Coin, 20.0mm
Number of Cells 1
Battery Series 2032
Mounting Type PCB, Through Hole
Termination Style PC Pin
Height Above Board 0.249" (6.32mm)
Base Product Number 120591
Standard Package 144 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853790-120591-1
Ultra Librarian 3D Model Ultra Librarian 120591-1 CAD Model

Description

The 853790-120591-1 is a battery holder designed for use with coin cell batteries from the AMP series from TE Connectivity.

  • Battery Size: 20.0mm
  • Termination Style: PC pin
  • Mounting: PCB through-hole
  • Height Above Board: 0.249" (6.32mm)
  • Package: Tray
  • Pieces per Tray: 144
  • ECCN: EAR99
  • REACH: Unaffected
  • Status: Active
