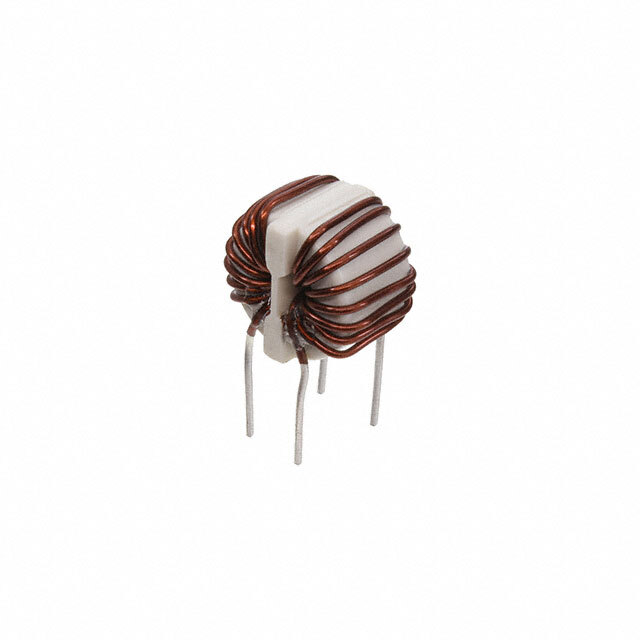

Same model may have multiple batches, images only for reference.
SU9VD-07020 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SU9VD-07020

Part No SU9VD-07020
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 20UH 700MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 µH @ 1 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max) 0.669" (17.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530647-SU9VD-07020
Ultra Librarian 3D Model Ultra Librarian SU9VD-07020 CAD Model
