SU9HF-05030 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

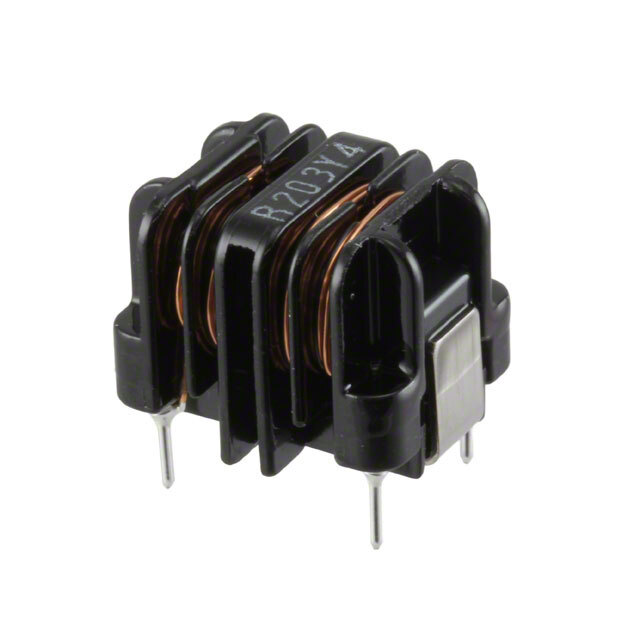

SU9HF-05030

Part No SU9HF-05030
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 3MH 500MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530646-SU9HF-05030
Ultra Librarian 3D Model Ultra Librarian SU9HF-05030 CAD Model
