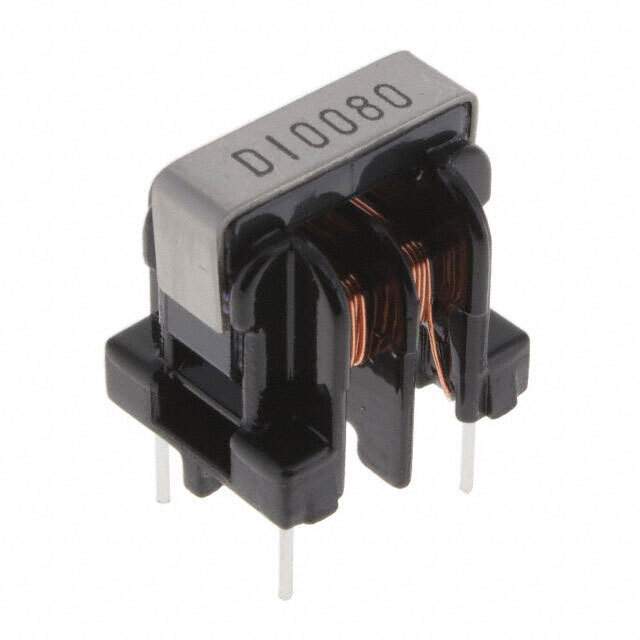

SU10VD-10080 Real Image
Same model may have multiple batches, images only for reference.

SU10VD-10080

Part No SU10VD-10080
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 80 µH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU10VD
Other Names UALSU10VD10080,399-SU10VD-10080
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276455-SU10VD-10080
Ultra Librarian 3D Model Ultra Librarian SU10VD-10080 CAD Model

Description

The Kemet Common Mode Choke is a high-quality component designed to meet the needs of modern electronics.

  • Component: Common Mode Choke
  • Manufacturer: Kemet
  • Voltage Rating: 250V
  • Current Rating: 1A
  • Application: Power line filters
  • Series: SU series
  • Mounting: Through-hole packaging
  • Operating Temperature: -25°C to 120°C
  • ROHS3 Compliant: Yes
