Same model may have multiple batches, images only for reference.

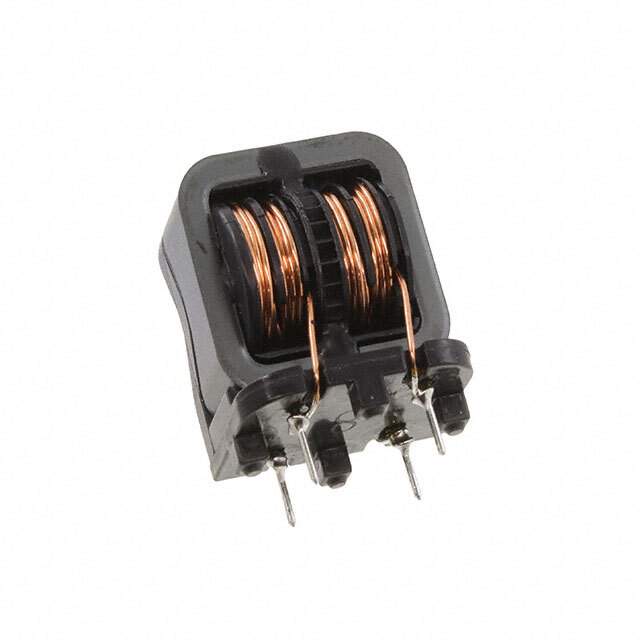

SSRH24NVS-30092 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NVS-30092

Part No SSRH24NVS-30092
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 9.2 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 79mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19078,UALS24VS300920
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276553-SSRH24NVS-30092
Ultra Librarian 3D Model Ultra Librarian SSRH24NVS-30092 CAD Model

Description

The KEMET SSR series common mode choke is a power line filter with a voltage rating of 250V AC and a maximum current rating of 3A.

  • Series: SSR
  • Manufacturer: KEMET
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 3A
  • Package Type: Bulk
  • Height: 1.220 inches (31.00mm)
  • Lines: Two
  • Inductance @ frequency: 9.2mH @ 10kHz
  • DC Resistance (DCR): 79mOhm
  • Mounting Type: Through hole
  • Package/Case: Vertical with 4 PC pins
  • Temperature Range: From -25°C to 120°C
