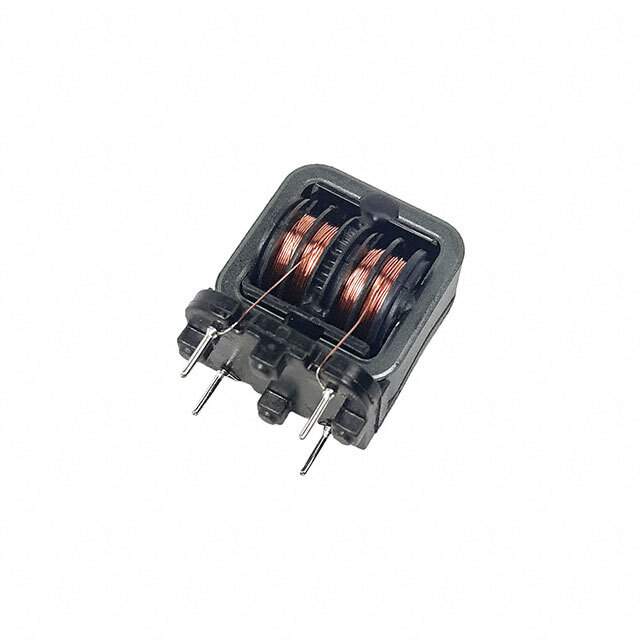

SSR21NVS-20034 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-20034

Part No SSR21NVS-20034
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 3.4 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names 399-19515,UALN21VS200340
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276598-SSR21NVS-20034
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-20034 CAD Model

Description

The KEMET SSR21NVS series common mode choke filter is designed to reduce electromagnetic interference (EMI) and radio frequency interference (RFI).

  • Package: Bulk
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 2A
  • Height: 1.063 inches (27.00mm)
  • Dimension: 0.866 inches L x 0.630 inches W (22.00mm x 16.00mm)
  • Lines: Two
  • Inductance: 3.4 mH @ 10 kHz
  • DC Resistance (DCR): 70mOhm (max)
  • Operating Temperature Range: -25°C to 120°C
  • Mounting: Through a hole on a vertical, 4 PC pin package
  • REACH: Not affected
  • ECCN: EAR99
