Same model may have multiple batches, images only for reference.

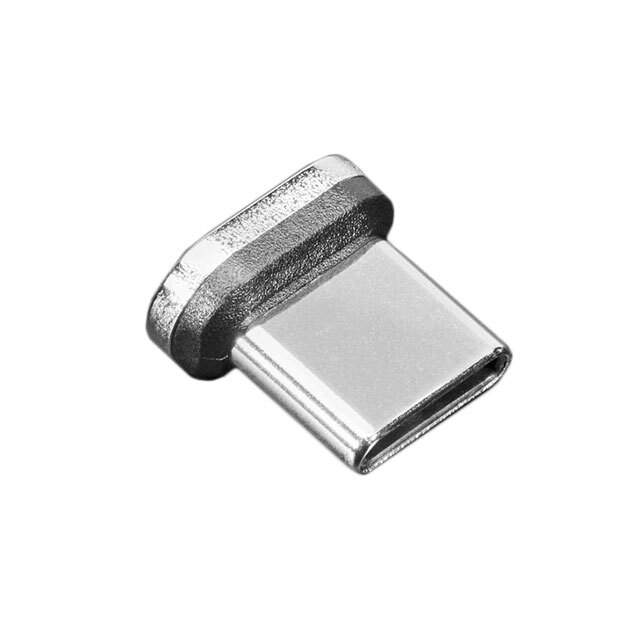

5524 Real Image
Same model may have multiple batches, images only for reference.

5524

Part No 5524
Manufacturer Adafruit Industries LLC
Catalog USB, DVI, HDMI Connectors
Description MAGNETIC USB TYPE-C PLUG TIP
Datasheet
5524 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Adapters
Mfr Adafruit Industries LLC
Package Bulk
Product Status Active
Convert From (Adapter End) USB-C (USB TYPE-C), Plug
Convert To (Adapter End) USB-C (USB TYPE-C), Receptacle
Mounting Type Free Hanging (In-Line)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 546600-5524
Ultra Librarian 3D Model Ultra Librarian 5524 CAD Model

Description

The USB-C to USB-C adapter is a convenient solution for connecting USB-C devices with USB-C receptacles.

  • Mounting Type: Free-Hanging (In-Line)
  • Package: Bulk
