Same model may have multiple batches, images only for reference.

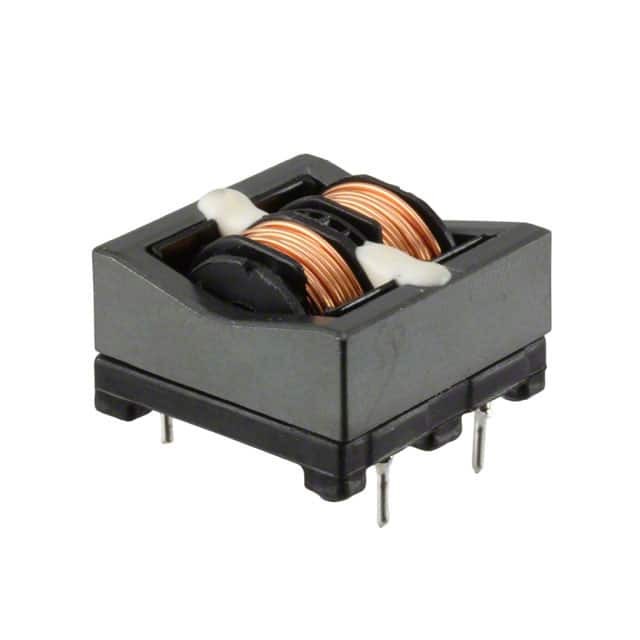

SSR21H-15083 Kemet
Same model may have multiple batches, images only for reference.

SSR21H-15083

Part No SSR21H-15083
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR21H
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8.3 mH @ 10 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 160mOhm
Voltage Rating - DC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max) 0.571" (14.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21H
Other Names 399-10774,399-10774,399-SSR21H-15083,UALR21H1508300
Standard Package 420
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276544-SSR21H-15083
Ultra Librarian 3D Model Ultra Librarian SSR21H-15083 CAD Model

Description

The Kemet SSR21H-15083 is a common mode choke with a maximum current rating of 1.5A and a voltage rating of 250V DC.

  • Manufacturer: Kemet
  • Product Name: SSR21H-15083
  • Maximum Current Rating: 1.5A
  • Voltage Rating: 250V DC
  • Inductance: 8.3 mH @ 10 kHz
  • DC Resistance: 160 mOhm
  • Package: In bulk form with a standard package of 420
  • Height: 0.571" (14.50mm)
  • Package/Case: Vertical, 4 PC pin
  • RoHS: Compliant
  • REACH: Unaffected
