Same model may have multiple batches, images only for reference.

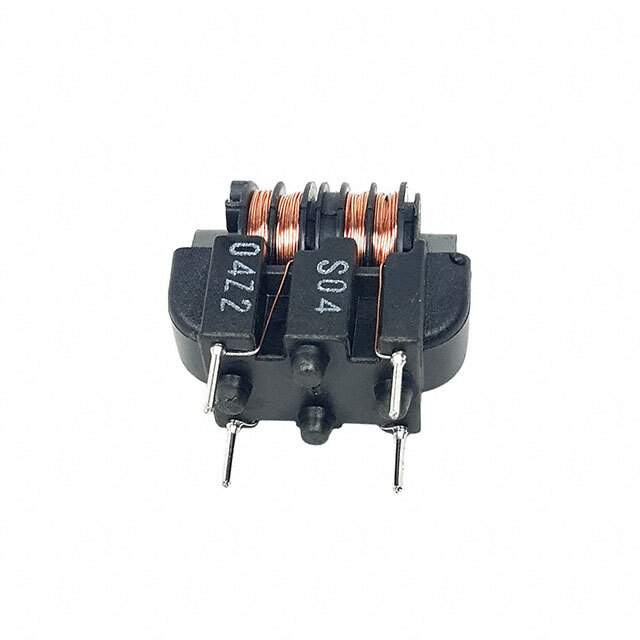

SSR10VS-05495 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-05495

Part No SSR10VS-05495
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 49.5 mH @ 10 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1.6Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names UALR10VS054950,399-19037
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276578-SSR10VS-05495
Ultra Librarian 3D Model Ultra Librarian SSR10VS-05495 CAD Model

Description

The SSR10VS-05495 is a common mode choke from KEMET that has a current rating of 500mA and an inductance of 49.5 mH @ 10 kHz.

  • Current Rating: 500mA
  • Inductance: 49.5 mH @ 10 kHz
  • Maximum Height: 0.827" (21.00mm)
  • Package: vertical, 4 PC pin package
  • Operating Temperature Range: -25°C to 120°C
