Same model may have multiple batches, images only for reference.

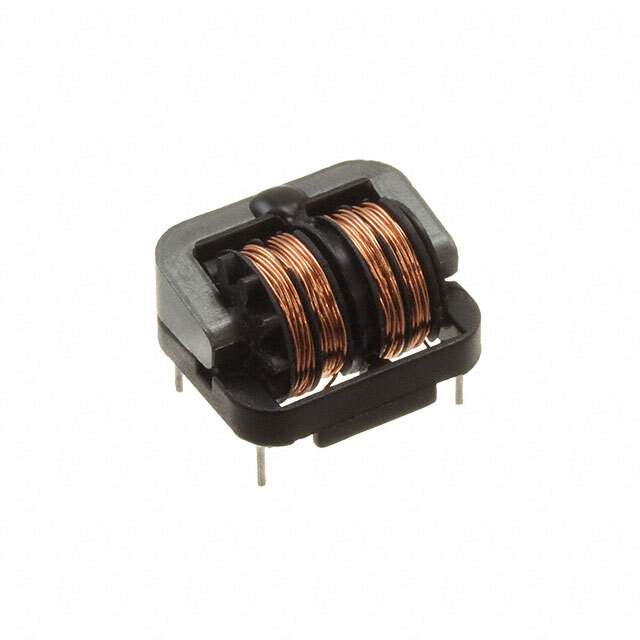

SSR10HS-30013 Real Image
Same model may have multiple batches, images only for reference.

SSR10HS-30013

Part No SSR10HS-30013
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 1.3 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 0.531" (13.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10HS
Other Names UALR10HS300130,399-19024
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276646-SSR10HS-30013
Ultra Librarian 3D Model Ultra Librarian SSR10HS-30013 CAD Model

Description

The SSR10HS-30013 is a common mode choke filter from KEMET.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 3A
  • Height: 0.531 inches
  • Package Type: Bulk
  • Inductance @ Frequency: 1.3 mH @ 10 kHz
  • DC Resistance: 60mOhm
  • Package or Case: Vertical, 4 PC pin
  • Mounting Type: Through-Hole
  • Temperature Range: -25°C to 120°C
