Same model may have multiple batches, images only for reference.

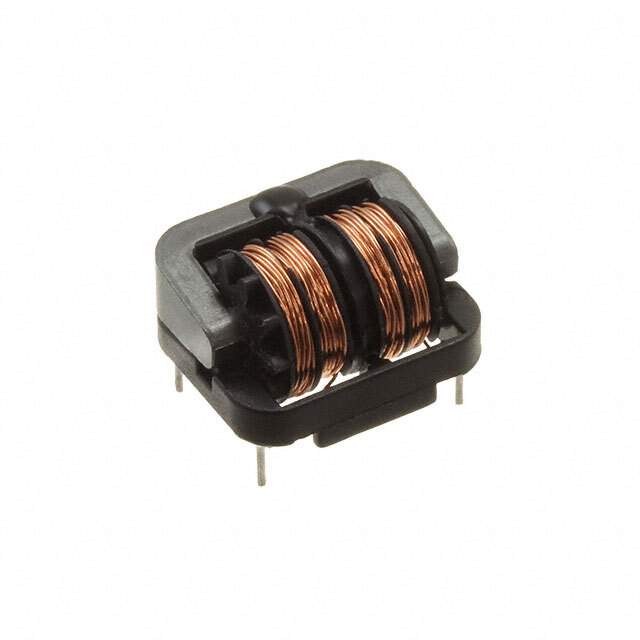

SSR10HS-07265 Real Image
Same model may have multiple batches, images only for reference.

SSR10HS-07265

Part No SSR10HS-07265
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 26.5 mH @ 10 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 850mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 0.531" (13.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10HS
Other Names UALR10HS072650,399-19017
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276603-SSR10HS-07265
Ultra Librarian 3D Model Ultra Librarian SSR10HS-07265 CAD Model

Description

The KEMET SSR10HS-07265 is a common mode choke filter that is commonly used in a variety of applications.

  • Voltage Rating: 250V
  • Current Rating: 700mA
  • Inductance @ Frequency: 26.5 mH @ 10 kHz
  • DC Resistance: 850mOhm
  • Package: Vertical, 4 PC Pin
  • Dimensions: 0.531" (13.50mm) in height
  • Component: Active
  • Temperature Range: -25°C to 120°C
  • Standard Package: 300
