Same model may have multiple batches, images only for reference.

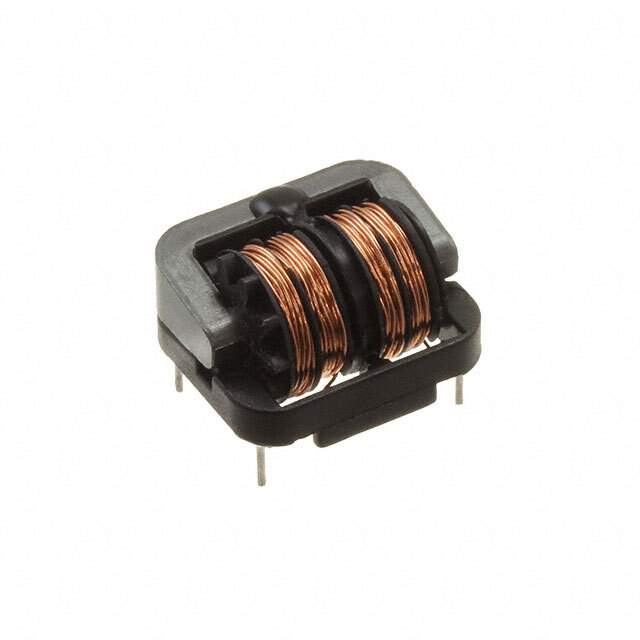

SSR10HS-04745 Real Image
Same model may have multiple batches, images only for reference.

SSR10HS-04745

Part No SSR10HS-04745
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 74.5 mH @ 10 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 2.5Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 0.531" (13.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10HS
Other Names UALR10HS047450,399-19014
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276563-SSR10HS-04745
Ultra Librarian 3D Model Ultra Librarian SSR10HS-04745 CAD Model

Description

The SSR10HS-04745 is a common mode choke from KEMET.

  • Use: filters
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 400mA
  • Standard Package: 300
  • Height: 0.531 inches
  • Lines: Two
  • Inductance: 74.5 mH @ 10 kHz
  • DC Resistance: 2.5 Ohm
  • Mounting: Through a hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99 compliant
  • REACH: unaffected by REACH
  • HTSUS: 8548.00.0000
