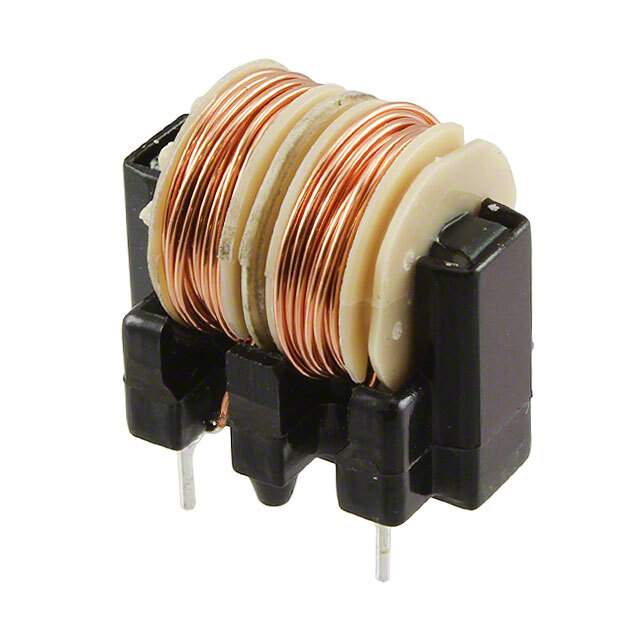

SSB11V-R17043 Real Image
Same model may have multiple batches, images only for reference.

SSB11V-R17043

Part No SSB11V-R17043
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.3 mH @ 1 kHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 180mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 130°C
Mounting Type Through Hole
Dimension 0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max) 1.028" (26.10mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSB11V
Other Names 399-10672,UALB11VR170430
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276762-SSB11V-R17043
Ultra Librarian 3D Model Ultra Librarian SSB11V-R17043 CAD Model

Description

The KEMET SSB11V-R17043 is a common mode choke filter that is used to reduce noise in electronic devices.

  • Voltage Rating: 250V AC
  • Maximum Current: 1.7A
  • Package Type: bulk
  • Mounting: through hole
  • Height: 26.10mm
  • Dimension: 22.00mm x 14.50mm
  • Inductance: 4.3mH @ 1 kHz
  • DC Resistance: 180mOhm
  • Temperature Range: -25°C to 130°C
  • Standard Package: 600
