Same model may have multiple batches, images only for reference.

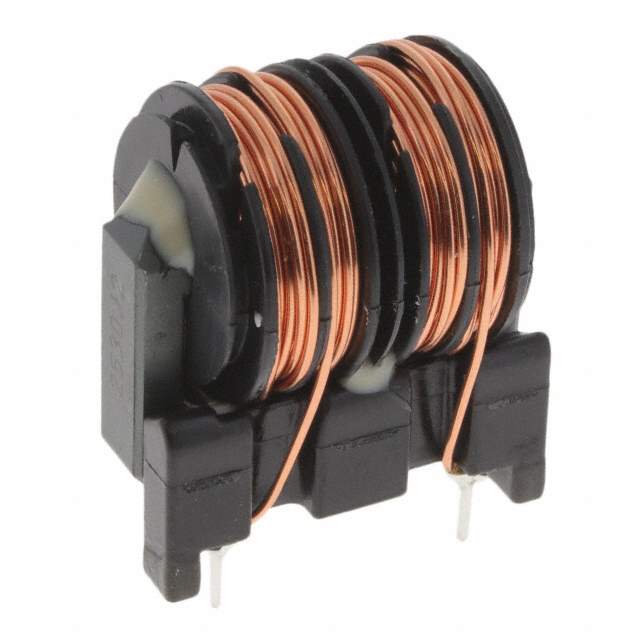

SS30V-250070 Real Image
Same model may have multiple batches, images only for reference.

SS30V-250070

Part No SS30V-250070
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 7 mH @ 1 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 160mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-SS30V-250070,UAL30V25007000
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276716-SS30V-250070
Ultra Librarian 3D Model Ultra Librarian SS30V-250070 CAD Model

Description

The KEMET SS30V-250070 is a common mode choke filter designed for power line filtering applications.

  • Filter Type: Two-line filter
  • Inductance: 7mH @ 1kHz
  • Maximum DC Resistance: 160mOhm
  • Voltage Rating for AC: 250V
  • Current Rating: 2.5A
  • Mounting: Through a hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Length: 1.220 inches
  • Width: 0.886 inches
  • Packaging: Tray with 200 units per package
  • ECCN: EAR99
  • REACH: Unaffected
