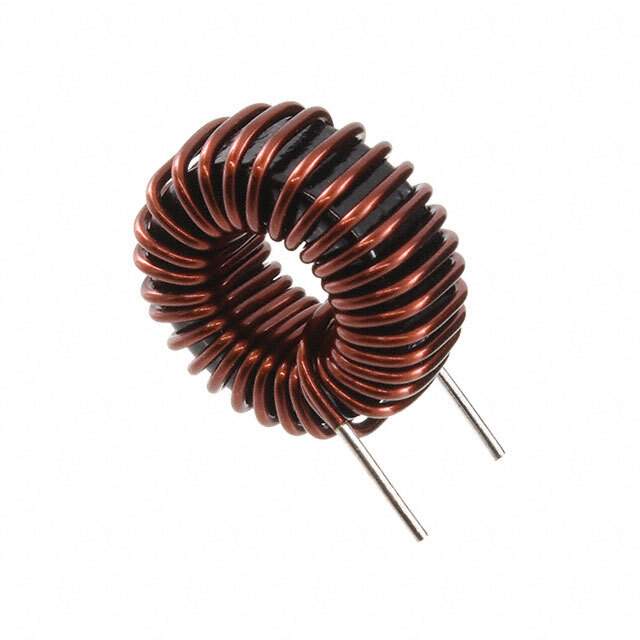

SNT-S10T Real Image
Same model may have multiple batches, images only for reference.

SNT-S10T

Part No SNT-S10T
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S10T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Package Tape & Reel (TR)
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 1.5 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names 399-SNT-S10TTR,UDLSNT0S10T000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276803-SNT-S10T
Ultra Librarian 3D Model Ultra Librarian SNT-S10T CAD Model

Description

The SNT-S10T is a common mode choke filter designed for signal line applications.

  • Manufacturer: KEMET
  • Current Rating (Max): 3A
  • Inductance: 1.5 µH @ 100 kHz
  • DC Resistance: 25 Ohm
  • RoHS: compliant
  • REACH: unaffected
  • ECCN: EAR99
