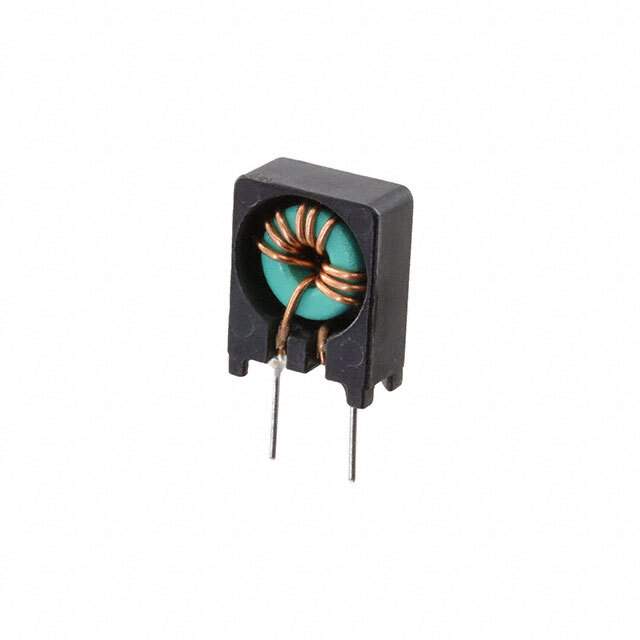

SNT-S10 Real Image
Same model may have multiple batches, images only for reference.

SNT-S10

Part No SNT-S10
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 1.5 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25Ohm
Temperature Range - Operating 20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names UDLSNT0S100000,399-SNT-S10
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276819-SNT-S10
Ultra Librarian 3D Model Ultra Librarian SNT-S10 CAD Model

Description

The Kemet SNT-S10 is a common mode choke that is used in signal line filter applications.

  • Series: SNT
  • Height: 0.500" (12.70mm)
  • Lines: 2
  • Inductance: 1.5 µH @ 100 kHz
  • DC Resistance (DCR): 25Ohm
  • Mounting: Through-hole
  • Status: Active
  • Standard Package: 1,000
  • ECCN: EAR99
  • Operating Temperatures: 20°C ~ 60°C
  • Dimension: 0.374" L x 0.197" W (9.50mm x 5.00mm)
  • Package/Case: Vertical, 2 PC pin
  • HTSUS: 8548.00.0000
