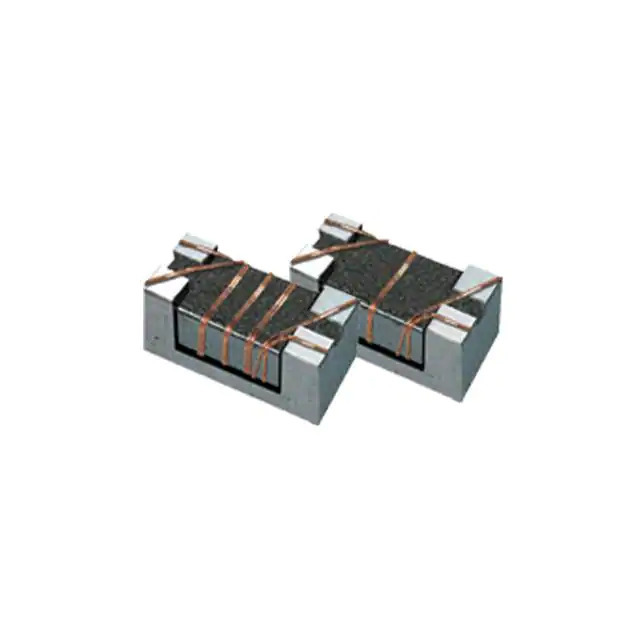

BWCU00201212301M02

Part No BWCU00201212301M02
Manufacturer Chilisin
Catalog Common Mode Chokes
Description CMC 290MA 2LN 300 OHM SMD
Datasheet
BWCU00201212301M02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Chilisin Electronics
Series BWCU_02
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 290mA
DC Resistance (DCR) (Max) 400mOhm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 105°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369368-BWCU00201212301M02
Ultra Librarian 3D Model Ultra Librarian BWCU00201212301M02 CAD Model

Description

The BWCU00201212301M02 is a common mode choke designed for filtering signals and manufactured by Chilisin Electronics.

  • Series: BWCU_02
  • Package: Horizontal, 4 PC Pad
  • Temperature Range: -40°C to 105°C
  • Voltage Rating: 50V
  • Current Rating: 290mA
  • Impedance: 300 Ohms @ 100 MHz
  • DC Resistance (DCR): 400mOhm (Max)
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
