Same model may have multiple batches, images only for reference.

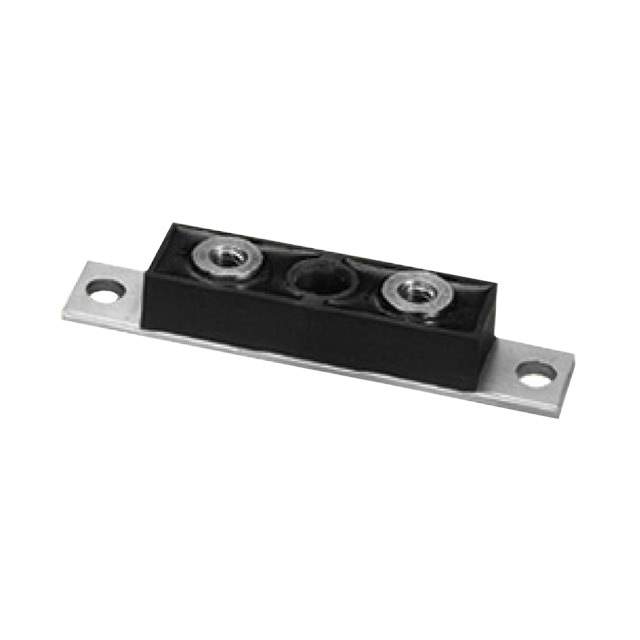

MBRF12060R Real Image
Same model may have multiple batches, images only for reference.

MBRF12060R

Part No MBRF12060R
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 60V 60A TO244AB / Rectifier Diode Schottky 60V 120A 3-Pin TO-244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Average Rectified (Io) (per Diode) 60A
Voltage - Forward (Vf) (Maximum) @ If 750mV @ 60A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 60V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Chassis Mount
Package TO-244AB
Manufacturer Package TO-244AB
Win Source Part Number 793122-MBRF12060R
Popularity Medium
Supply and Demand Status Limited
Family Name MBRF12060R
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MBRF12060R CAD Model

Description

The MBRF12060R is a Schottky diode from GeneSiC Semiconductor.

  • Packaging: Bulk
  • Recovery Speed: Fast
  • Current - Average Rectified (Io): 60A
  • Current - Average Rectified (Io) (per diode): 60A
  • Voltage - Forward (Vf) (Maximum) @ If: 750mV @ 60A
  • Voltage - DC Reverse (Vr) (Maximum): 60V
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Status: Obsolete/End-of-Life (EOL)
  • Estimated EOL Date:
