Same model may have multiple batches, images only for reference.

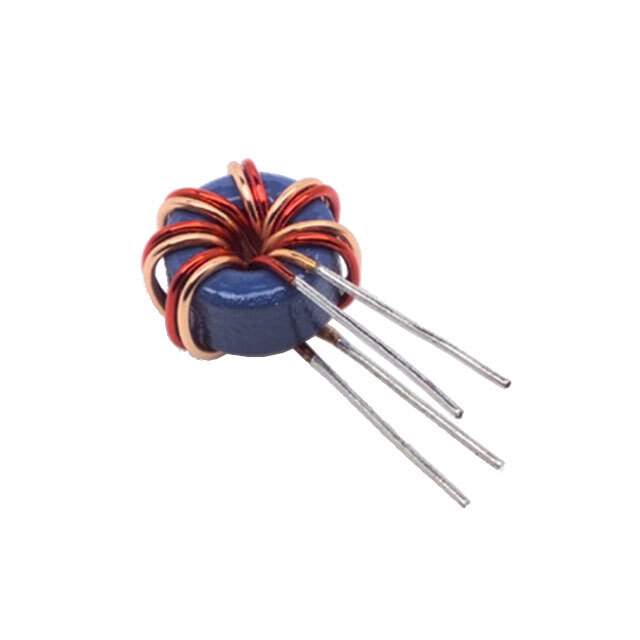

SHO-101 Real Image
Same model may have multiple batches, images only for reference.

SHO-101

Part No SHO-101
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SHO
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 15.5mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Through Hole
Dimension 0.433" Dia (11.00mm)
Height (Max) 0.433" (11.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Other Names 399-19670,UDLSHO01010000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276849-SHO-101
Ultra Librarian 3D Model Ultra Librarian SHO-101 CAD Model

Description

The SHO-101 is a common mode choke from Kemet.

  • Filter Type: Power Line
  • Mounting Style: Through-Hole
  • Maximum Current Rating: 4A
  • Voltage Rating: 50V DC
  • DC Resistance: 15.5mOhm
  • Temperature Range: -25°C to 70°C
  • Filter Height: 11.00mm
  • Package Dimension: 0.433" Dia.
