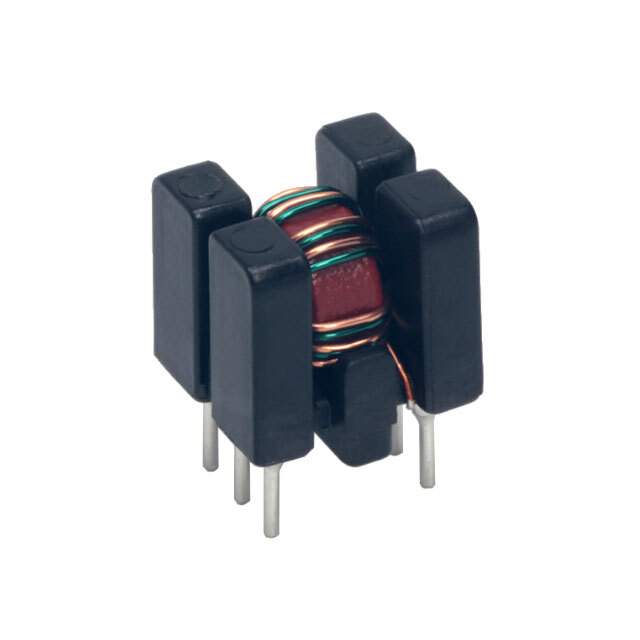

SH-311 Real Image
Same model may have multiple batches, images only for reference.

SH-311

Part No SH-311
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.2 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.374" (9.50mm)
Package / Case Vertical, 4 PC Pin
Other Names 399-19664,UDLSH003110000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276855-SH-311
Ultra Librarian 3D Model Ultra Librarian SH-311 CAD Model

Description

The SH-311 is a power line common mode choke manufactured by KEMET.

  • Voltage Rating (DC): 150V
  • Maximum Current: 3A
  • Height: 0.374" (9.50mm)
  • Lines: 2
  • Inductance: 3.2 µH @ 100 kHz
  • DC Resistance: 25mOhm (max)
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: -25°C to 80°C
  • Alternative Part: 399-19664, UDLSH003110000
