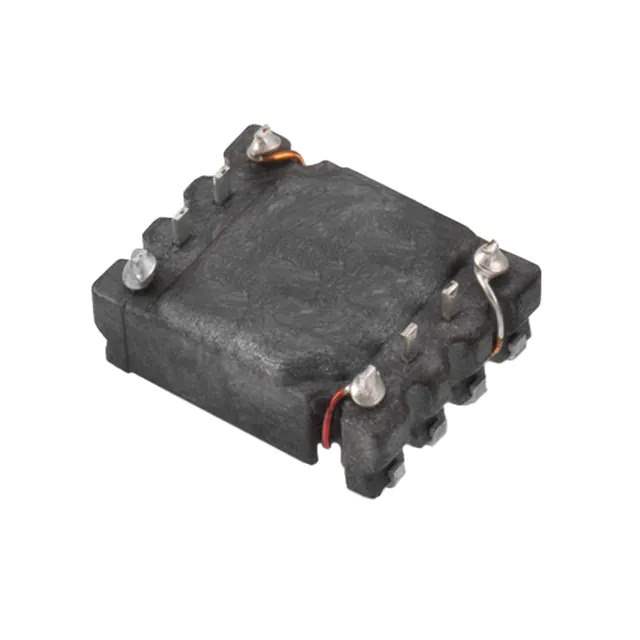

744201 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 4
Inductance @ Frequency 4.7 mH @ 100 kHz
Current Rating (Max) 200mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.238" (6.05mm)
Package / Case Horizontal, 8 Gull Wing
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547212-744201
Ultra Librarian 3D Model Ultra Librarian 744201 CAD Model

Description

The WE-SL series is a category of common mode chokes designed for use in filters.

  • Category: Common mode chokes
  • Application: Filters
  • Voltage Rating: 80V DC
  • Maximum Current Rating: 200mA
  • Application: Signal line
  • Package: Tape and reel
  • Height: 0.238" (6.05mm)
  • Lines: 4
  • Inductance @ 100 kHz: 4.7 mH
  • Mounting: Surface mountable
  • Package Type: Horizontal, 8 Gull Wing
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Status: Active
