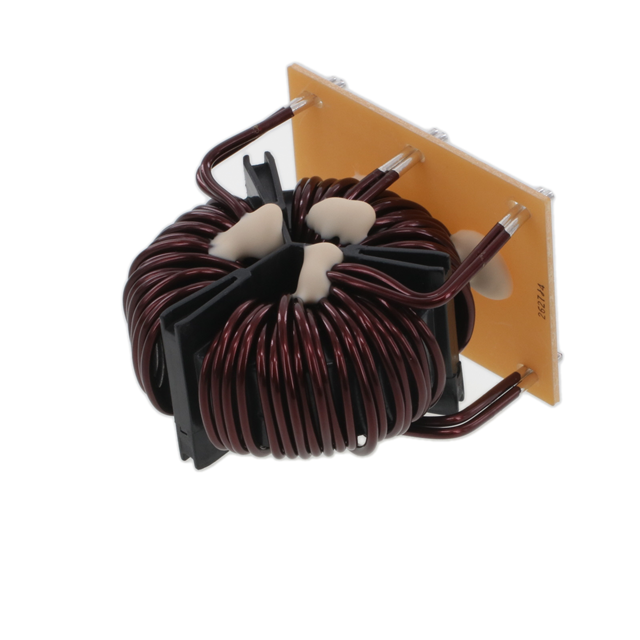

SCF47B-200-S1R9B026J Real Image
Same model may have multiple batches, images only for reference.

SCF47B-200-S1R9B026J

Part No SCF47B-200-S1R9B026J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 2.6 mH @ 100 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 2.9mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.480" L x 1.772" W (63.00mm x 45.00mm)
Height (Max) 2.559" (65.00mm)
Package / Case Vertical, 6 PC Pin
Base Product Number SCF47B
Other Names UALF47BS026J00,399-SCF47B-200-S1R9B026J
Standard Package 27
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276908-SCF47B-200-S1R9B026J
Ultra Librarian 3D Model Ultra Librarian SCF47B-200-S1R9B026J CAD Model

Description

The KEMET SCF47B-200-S1R9B026J is a common mode choke filter that has a voltage rating of 250V AC and DC.

  • Manufacturer: KEMET
  • Product Name: SCF47B-200-S1R9B026J
  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 20A
  • Standard Package: 27 units
  • Filter Type: Power line
  • Height: 2.559 inches or 65.00 mm
  • Lines: 3
  • Inductance: 2.6 mH @ 100 kHz frequency
  • DC Resistance (DCR): 2.9mOhm
  • Mounting Type: Through hole
  • Package/Case: Vertical with 6 PC pin
  • Temperature Range: 25 to 120 degrees Celsius
  • Dimension: 2.480 inches L x 1.772 inches W or 63.00 mm x 45.00 mm
  • MSL Level: Not applicable
  • REACH Status: Unaffected
