Same model may have multiple batches, images only for reference.

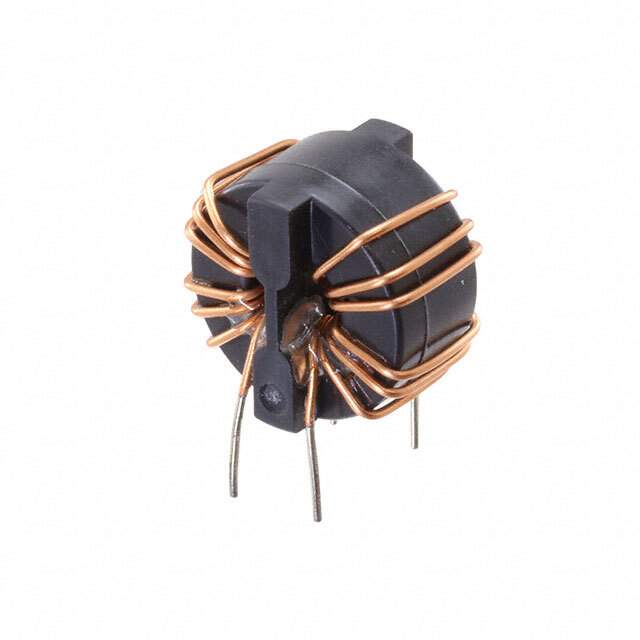

SCF-05-060 Real Image
Same model may have multiple batches, images only for reference.

SCF-05-060

Part No SCF-05-060
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 600 µH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 18mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.591" Dia (15.00mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SCF-05
Other Names UALSCF05060000,399-SCF-05-060
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276913-SCF-05-060
Ultra Librarian 3D Model Ultra Librarian SCF-05-060 CAD Model

Description

The KEMET SCF-05-060 is a common mode choke filter designed for power line filtering applications.

  • Maximum Current Rating: 5A
  • Voltage Rating: 250V AC and DC
  • Inductance: 600 µH @ 10 kHz
  • DC Resistance: 18mOhm
  • Temperature Range: 25°C to 120°C
  • Package: Vertical, no base, 4 PC pin through-hole mounting type
  • Package: Tray package with a standard package of 1,300
