Same model may have multiple batches, images only for reference.

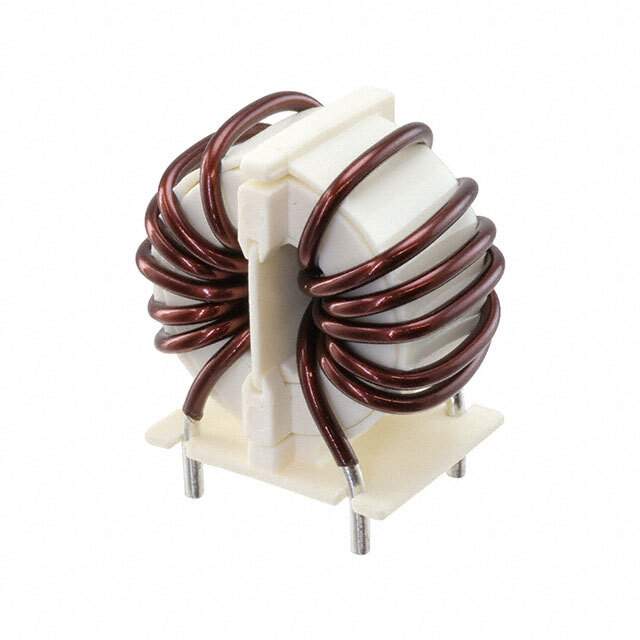

SC-20-03J Real Image
Same model may have multiple batches, images only for reference.

SC-20-03J

Part No SC-20-03J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 300 µH @ 1 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 4mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.378" L x 0.945" W (35.00mm x 24.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-20
Other Names 399-SC-20-03J,UALSC2003J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276969-SC-20-03J
Ultra Librarian 3D Model Ultra Librarian SC-20-03J CAD Model

Description

The SC-20-03J is a common mode choke from Kemet.

  • Type: Power line filter
  • Mounting Style: Through-hole
  • Maximum Current Rating: 20A
  • Voltage Rating: 250V AC/DC
  • DC Resistance: 4mOhm
  • Inductance: 300 μH @ 1 kHz frequency
  • Temperature Range: 25°C to 120°C
  • Standard Package: 200
  • Height: 34.00mm
  • Package Dimension: 35.00mm x 24.00mm
  • Ideal for: Use in products that require power line filtering to reduce electromagnetic interference.
