Same model may have multiple batches, images only for reference.

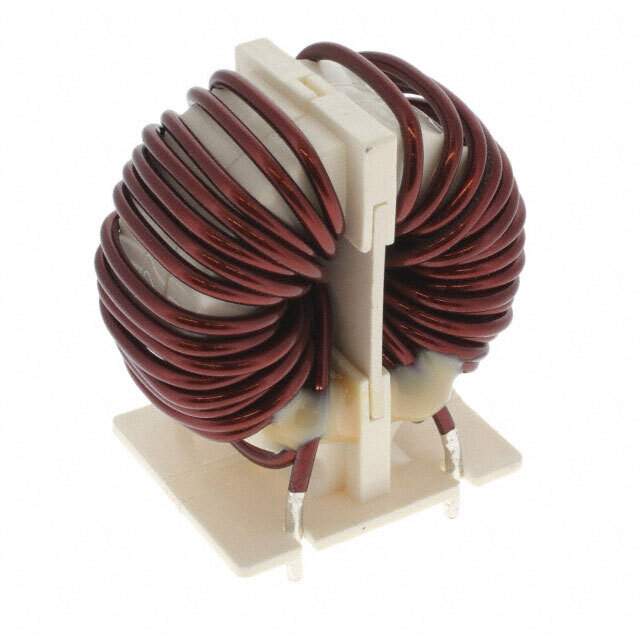

SC-18-25J Real Image
Same model may have multiple batches, images only for reference.

SC-18-25J

Part No SC-18-25J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.5 mH @ 10 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.732" L x 1.181" W (44.00mm x 30.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-18
Other Names UALSC1825J0000,399-SC-18-25J
Standard Package 160
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276984-SC-18-25J
Ultra Librarian 3D Model Ultra Librarian SC-18-25J CAD Model

Description

The KEMET SC-18-25J is a common mode choke filter designed to reduce electromagnetic interference (EMI) in power line applications.

  • Voltage Rating: Maximum AC and DC voltage rating of 250V
  • Current Rating: Maximum current rating of 18A
  • Suitable for: Wide range of applications
  • Package Type: Tray
  • Mounting Type: Through hole
  • Standard Package: 160
  • Filter Type: Power line
  • Height: 1.732 inches
  • Dimension: 1.732 inches in length and 1.181 inches in width
  • Temperature Range: 25°C to 120°C
  • Inductance: 2.5mH @ 10kHz
  • DC Resistance: 10mOhm
  • Efficient Filter: Eliminate EMI noise
  • Excellent Choice: Reducing noise in a wide range of applications.
