Same model may have multiple batches, images only for reference.

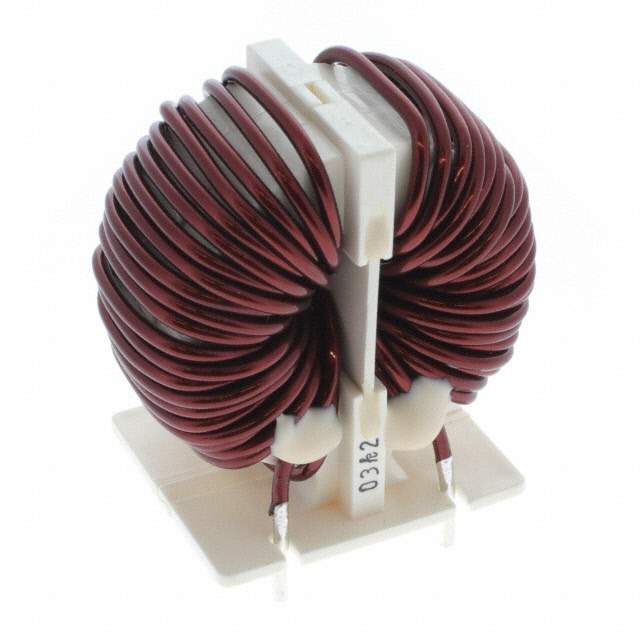

SC-15-02J Real Image
Same model may have multiple batches, images only for reference.

SC-15-02J

Part No SC-15-02J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 200 µH @ 100 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-15
Other Names 399-SC-15-02J,UALSC1502J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276980-SC-15-02J
Ultra Librarian 3D Model Ultra Librarian SC-15-02J CAD Model

Description

The SC-15-02J is a common mode choke filter designed for power line filtering.

  • Maximum Voltage Rating: 250V AC and DC
  • Current: Up to 15A
  • Inductance: 200 µH @ 100 kHz
  • DC Resistance: 6 mOhm
  • Mounting Type: Through-hole
  • Package Dimension: 1.339" L x 0.906" W (34.00mm x 23.00mm)
  • Temperature Range: 25°C to 120°C
  • Manufacturer: KEMET
